Donaldson P563224 Test Point

Product Description

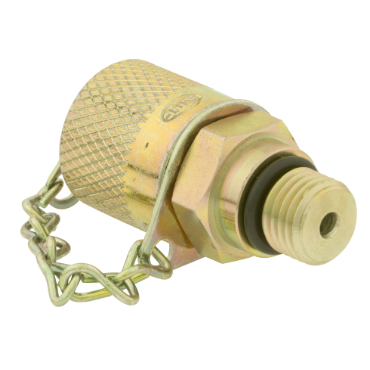

The Donaldson P563224 Test Point is designed for safe hydraulic oil sampling and pressure testing. It connects to high-pressure lines while machines operate, ensuring a leak-free connection.

• Permits safe oil sampling and pressure testing.
• Industrial standard M16 x 2 male test point thread.
• Metal cap secured with chain for reliability.

Product Highlights

This test point is ideal for professionals needing to conduct safe sampling and testing without shutting down equipment.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: P563224

Technical Specifications

• Thread Size: 7/16-20 UN
• Body Material: Plated Steel
• LHA Part No.: TPM-1620-04S
• Thread Type: SAE
• Seal Material: Buna-N
• Temperature Range [Min]: -22 °C
• Working Pressure [Max]: 9,000 psi
• Series: 1620 Series
• Cap Material: Plated Steel
• Overall Height: 1.810 in
• Hex Size: 0.67 in
• Installed Height: 37 mm
• Temperature Range [Max]: 248 °C
• Length: 1.81 in, 46 mm
• Weight: 0.1 LB
• EAN or UPC: 742330157558
