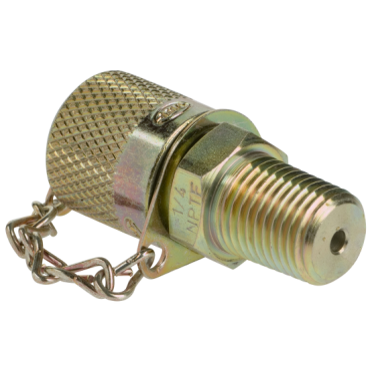

Donaldson P563220 Test Point 1/4 NPT Replacement MPN

Product Description

Donaldson P563220 is a test point designed for safe oil sampling and pressure testing from high-pressure lines. It ensures a leak-free connection even when machinery is operating under full pressure. This product connects easily to various machinery and meets industrial standards.

• Hydraulic test points allow for safe operation
• Industrial standard M16 x 2 male test point thread
• Metal cap secured with chain for reliability

Product Highlights

This test point is essential for maintenance tasks involving pressure testing and oil sampling.

Product Information

Standard Information

• Part Number: P563220
• Brand: Donaldson

Technical Specifications

• Temperature Range [Max]: 248 °C
• Temperature Range [Min]: -22 °C
• Working Pressure [Max]: 9,000 psi
• Thread Size: 1/4 NPT
• Overall Height: 1.970 inches
• Installed Height: 33 mm
• Body Material: Plated Steel
• Seal Material: Buna-N
• Hex Size: 0.67 inches
• Cap Material: Plated Steel
• Series: 1620 Series
• Weight: 0.2 LB
• EAN or UPC: 742330157510
