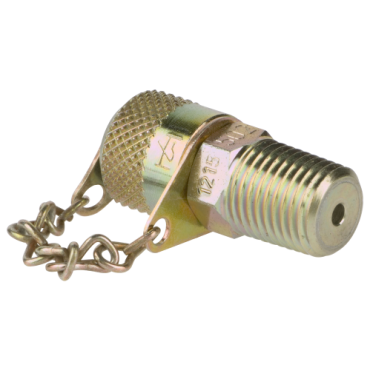

Donaldson P563193 Test Point 9000 psi

Product Description

The Donaldson P563193 is a hydraulic test point designed for safe oil sampling and pressure testing from high-pressure lines while machinery operates. It ensures a leak-free connection even under full pressure.

• Connects to machinery
• Industrial standard M16 x 2 male test point thread
• Metal cap secured with a chain

Product Highlights

This test point is essential for maintenance tasks in industrial settings, enabling efficient monitoring without stopping operations.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100181471

Technical Specifications

• Thread Size: 1/4 NPT
• Thread Type: NPTF
• Working Pressure Max: 9,000 psi
• Temperature Range Max: 248 °C
• Temperature Range Min: -22 °C
• Overall Height: 1.73 inches
• Hex Size: 0.55 inches
• Seal Material: Buna-N
• Body Material: Plated Steel
• Cap Material: Metal
• LHA Part No.: TPM-1215-04N
• Series: 1215 Series
• Installed Height: 29 mm
• Weight: 0.1 LB
• EAN or UPC: 742330157244
