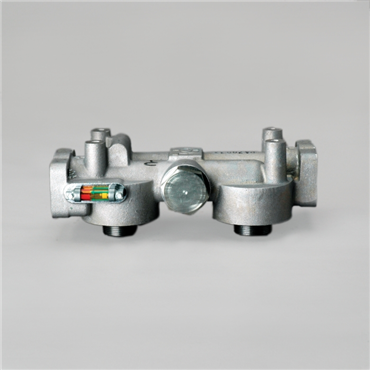

Donaldson P560855 Head Assembly

Product Description

The Donaldson P560855 Head Assembly is designed for medium-duty filters in various applications. Often used in return line situations, these assemblies are suitable for charge pressure and control systems. They are also effective in kidney loop offline filtration systems where high-quality elements are necessary. The filter head and element are sold separately to accommodate specific needs.

• Inline mounting
• Spin-on-style filter element
• Synthetic media

Product Highlights

Designed for robust performance in filtration.

Product Information

Standard Information

• Brand: Donaldson
• MPN: P560855

Technical Specifications

• Filter Series: HMK05/25
• Bypass Valve Setting LR: 49 psi, 3.4 bar
• Thread Size: 1 3/4-12 UN
• Height: 6.4 inches
• Length: 11.84 inches
• Max Flow GPM (Head Only): 100
• Inlet Size: 1 1/2 SAE 4 Bolt Code 61
• Outlet Size: 1 1/2 SAE 4 Bolt Code 61
