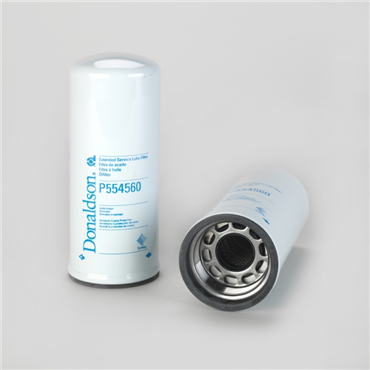

Donaldson P554560 Spin-On Fuel Filter

Product Description

The Donaldson P554560 is a Spin-On Fuel Filter designed for various engine applications. This filter features a full-flow design to ensure optimal fuel flow and filtering efficiency. It has a thread size of M90 x 2, making it compatible with a range of fuel systems.

• Outside diameter of four point six one inches
• Length of eleven point six nine inches
• Features synthetic media with a filtration efficiency of 99% at fifteen microns

Product Highlights

This Spin-On Fuel Filter provides high fuel filtration efficiency and durability, suitable for both automotive and industrial applications.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 110511924
• Availability: Ready To Ship

Technical Specifications

• Length: 11.69 inches
• Outer Diameter: 4.61 inches
• Gasket ID: 3.86 inches
• Gasket OD: 4.65 inches
• Thread Size: M90 x 2
• Collapse Burst Pressure: 149.39 psi
• Media Type: Synthetic
• Efficiency Standard: ISO 4548-12
• EAN or UPC: 742330964439
• Weight: 4.9 lbs
