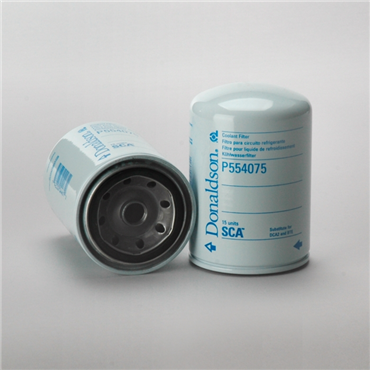

Donaldson P554075 Spin-On Coolant Filter

Product Description

The Donaldson P554075 is a spin-on coolant filter designed for efficient filtration in various cooling systems. This filter measures three point six six inches in outer diameter and five point three five inches in length, making it suitable for specific applications. It is compatible with Cummins engine models, especially model number 3318318.

• Efficiency rated at ninety-nine percent with a fifty micron filtration
• Constructed from cellulose media
• Thread size of eleven sixteenths by sixteen UN

Product Highlights

The Donaldson P554075 coolant filter is essential for maintaining engine performance by trapping contaminants in the cooling system.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100180403

Technical Specifications

• Outer Diameter: 3.66 in, 93 mm
• Length: 5.35 in, 136 mm
• Gasket O.D.: 2.8 in, 71 mm
• Gasket I.D.: 2.4 in, 61 mm
• Media Type: Cellulose
• Primary Application: CUMMINS 3318318
• Efficiency Test Standard: SAE J1985
• Weight: 1.2 LB
