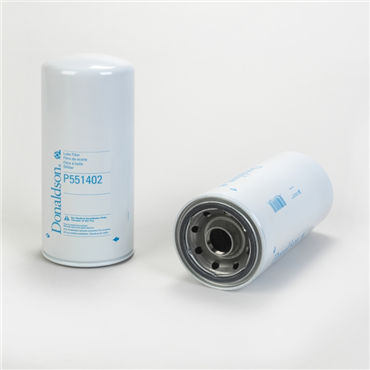

Donaldson P551402 Spin-On Fuel Filter Full-Flow 5.31 in

Product Description

The Donaldson P551402 Spin-On Fuel Filter is a reliable fuel filtration solution designed for vertical installation. This filter features a 1 1/2-16 UN thread size, ensuring compatibility with a variety of applications. The full-flow design allows for efficient filtration, effectively removing contaminants from fuel systems.

• 5.31 inches outside diameter
• Full-flow filtration
• Bypass valve included

Product Highlights

The P551402 has a bypass valve that operates at low and high settings for enhanced performance under varying conditions.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100180323

Technical Specifications

• Thread Size: 1 1/2-16 UN
• Bypass Valve Setting LR (PSI): 32 psi
• Length: 12.13 inches
• Outer Diameter: 5.31 inches
• Bypass Valve Setting HR (PSI): 2.7 psi
• Efficiency Test Standard: ISO 16889
• Primary Application: Vertical installation only - Threads at the top
• Efficiency: 99% at 21 micron
• Media Type: Cellulose
• Weight: 4.0 lb
• EAN or UPC: 742330111642
