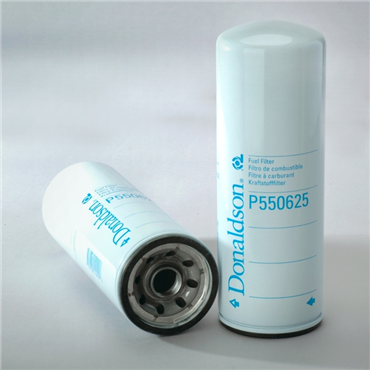

Donaldson P550625 Spin-On Fuel Filter

Product Description

The Donaldson P550625 is a spin-on fuel filter designed for optimal filtration in various applications. This fuel filter measures three point six nine inches in outer diameter and features a one-14 UN thread size. It is built for secondary filtration purposes, ensuring that contaminants are effectively removed from fuel systems.

• Length: ten point four three inches
• Gasket Outer Diameter: three point five eight inches
• Media Type: cellulose

Product Highlights

This fuel filter is built to meet SAE J1985 efficiency test standards. It effectively captures particulates at a three micron level, enhancing the overall performance of the engine.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: P550625

Technical Specifications

• Outer Diameter: three point six nine inches
• Length: ten point four three inches
• Weight: one point six pounds
• Thread Size: one-14 UN
• Gasket ID: three point zero five inches
• Gasket OD: three point five eight inches
• Collapse Burst: one hundred point oh eight psi
• Efficiency at 99%: three microns
