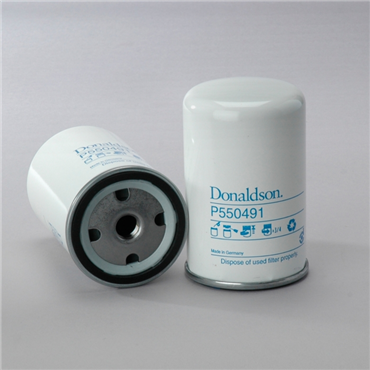

Donaldson P550491 Spin-On Fuel Filter

Product Description

The Donaldson P550491 is a spin-on fuel filter designed for efficient filtration. This filter effectively separates water to protect engine components from damage. It features a standard thread size of M16 x 1.5, making it easy to install on compatible engines.

• Outer diameter is three point fifteen inches.
• Gasket outer diameter is two point eight inches.
• High emulsified water efficiency at ninety-five percent.

Product Highlights

The Donaldson P550491 fuel filter is ideal for engines that require high-quality filtration. Its design allows for quick replacement, ensuring minimal downtime.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100176010

Technical Specifications

• Style: Spin-On
• Efficiency Test Standard: SAE J1985
• Gasket Outer Diameter: 2.8 inches, 71 mm
• Type: Water Separator
• Gasket Inner Diameter: 2.44 inches, 62 mm
• Length: 4.88 inches, 124 mm
• Thread Size: M16 x 1.5
• Efficiency Beta 2: 4 micron
• Outer Diameter: 3.15 inches, 80 mm
• Media Type: Cellulose
• Weight: 0.868 lb
• EAN or UPC: 742330115732
