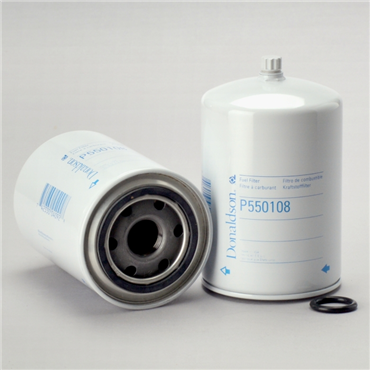

Donaldson P550108 Spin-On Fuel Filter

Product Description

The Donaldson P550108 is a spin-on fuel filter designed for effective fuel filtration. It features a water separator that helps to remove unwanted moisture from fuel systems. This filter is built with a one to fourteen UN thread size to ensure easy installation.

• 3.69 inches outside diameter
• Water separator type
• Spin-on style

Product Highlights

The Donaldson P550108 filter is essential for maintaining fuel system efficiency by reducing water contamination and ensuring clean fuel flow.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100180007

Technical Specifications

• Outer Diameter: 3.69 inches (93.8 mm)
• Length: 6.04 inches (153.4 mm)
• Thread Size: 1-14 UN
• Type: Water Separator
• Efficiency Test Standard: SAE J1985
• Collapse Burst: 59.47 psi (4.1 bar)
• Emulsified H2O Efficiency: 95 Percent
• Gasket I.D.: 2.41 inches (61.3 mm)
• Gasket O.D.: 2.73 inches (69.3 mm)
• Efficiency at 50%: 25 micron
• Weight: 1.2 LB
• EAN or UPC: 742330040928
