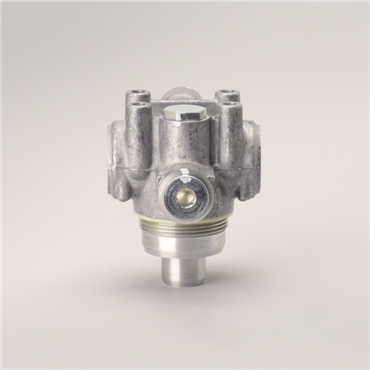

Donaldson P179460 Head Assembly

Product Description

The Donaldson P179460 Head Assembly is designed for medium-duty filter applications. It is effective in return line, charge pressure, and control system applications. The assembly works well in kidney loop offline filtration systems where high-quality filtration is needed. This product features inline mounting and is compatible with spin-on-style filter elements. The filter head and element are sold separately, allowing for flexibility based on your specific needs.

• SAE-12 inlet and outlet sizes
• Compatible with synthetic media
• 100 psi collapse rating

Product Highlights

Versatile for various applications, built for performance, and designed for easy installation.

Product Information

Standard Information

• Brand: Donaldson
• MPN: P179460

Technical Specifications

• Length: 3.38 inches
• Height: 4.22 inches
• Weight: 1.5 LB
• Inlet Size: SAE-12
• Outlet Size: SAE-12
• Thread Size: 2-12 UN
• Max Flow GPM (Head Only): 25
• Bypass Valve: Yes
• Bypass Valve Setting (PSI): 51 psi
