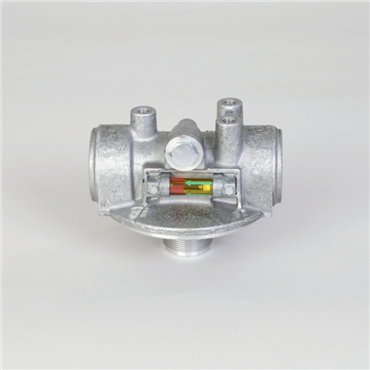

Donaldson P172953 Head Assembly

Product Description

The Donaldson P172953 Head Assembly is designed for reliable engine performance. It features an inlet size of one and one-quarter inches by eleven and a half NPT and an outlet size of one and one-quarter inches by eleven and a half NPT.

• Bypass valve included for effective pressure regulation.
• Compatible with HBK05 filter series.
• Constructed for durability with a filter-to-head thread of one and a half by sixteen UN.

Product Highlights

This head assembly is ideal for engine applications requiring precise filtration and pressure control.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 101671559

Technical Specifications

• Filter-to-Head Thread: 1 1/2-16 UN
• Bypass Valve: Yes
• Height: 4.41 inches, 112 mm
• Length: 5.53 inches, 140.46 mm
• Inlet Size: 1 1/4-11 1/2 NPT
• Weight: 2.7 lb
• Series: HBK05
• EAN or UPC: 742330955956
