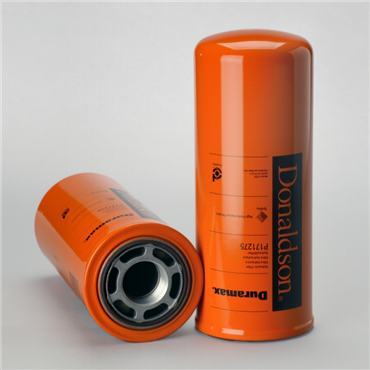

Donaldson P171275 Spin-On Fuel Filter

Product Description

The Donaldson P171275 is a spin-on fuel filter designed to efficiently filter fuel for various applications. This fuel filter features a thread size of 1 3/4-12 UN, making it suitable for many systems. The outer diameter of this filter is 4.7 inches, which aids in its easy installation in compatible units.

• 4.7 inches Outside Diameter
• Thread Size of 1 3/4-12 UN
• Synthetic media for effective filtration

Product Highlights

This spin-on fuel filter is ideal for hydraulic applications and features a strong Viton seal, ensuring a reliable fit that prevents leaks. It is designed with efficient filtration properties, capturing particles as small as 11 microns.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: P171275

Technical Specifications

• Thread Size: 1 3/4-12 UN
• Length: 11.63 inches (295.4 mm)
• Outer Diameter: 4.7 inches (119.38 mm)
• Efficiency Beta: 11 Micron @ Beta 1000
• Filter Series: HMK05/25
• Primary Application: With Epoxy bonding
• Seal Material: Viton
• Media Type: Synthetic
