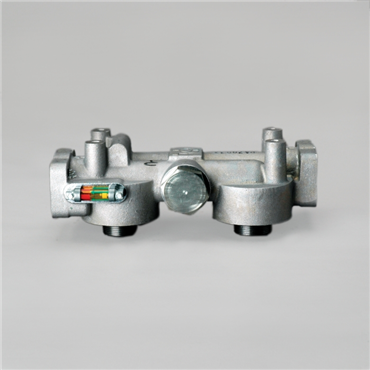

Donaldson P169984 Head Assembly 1 1/2 SAE 4 Bolt Code 61

Product Description

The Donaldson P169984 is a head assembly designed for medium-duty filtration systems. This assembly is commonly used in return line applications, charge pressure control systems, and kidney loop offline filtration setups. The head and filter element are sold separately, allowing for tailored configurations to meet specific needs.

• Inlet Size: 1 1/2 SAE 4 Bolt Code 61
• Outlet Size: 1 1/2 SAE 4 Bolt Code 61
• Max Flow: 100 GPM

Product Highlights

This product features a robust design with inline mounting and a spin-on style filter element. It utilizes synthetic media suitable for a variety of applications.

Product Information

Standard Information

• Part Number: 100178399
• Brand: Donaldson

Technical Specifications

• Family Name: HMK05/25 Series Engine Cylinder Head Assembly
• Filter-to-Head Thread: 1 3/4-12 UN (x2)
• Max Flow GPM (Head Only): 100
• Height: 6.29 inches
• Length: 11.84 inches
• Thread Size: 1 3/4-12 UN
• Bypass Valve: NO
• Weight: 7.9 LB
