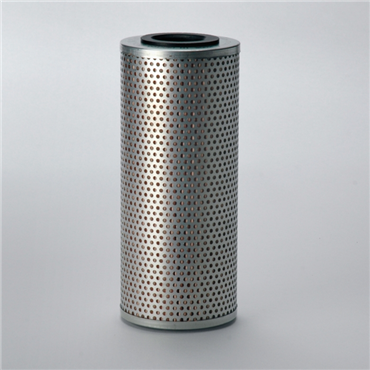

Donaldson P167410 Cartridge Fuel Filter

Product Description

The Donaldson P167410 is a cartridge fuel filter designed for hydraulic systems. It is interchangeable with filters from various manufacturers such as Pall, Parker, and Schroeder. This filter enhances system performance by effectively removing contaminants from the fuel.

• Interchangeable with Pall, Parker, and Schroeder filters
• Increased dirt holding capacity for extended filter life
• Meets or exceeds original specifications

Product Highlights

The Donaldson P167410 cartridge fuel filter provides reliable filtration, ensuring optimal performance of hydraulic systems.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100180885

Technical Specifications

• Outer Diameter: 3.84 in, 97.5 mm
• Inner Diameter: 1.61 in, 41 mm
• Length: 9.02 in, 229 mm
• Media Type: Cellulose
• Efficiency Beta: 23 Micron @ Beta 1000, 7 Micron @ Beta 2
• Collapse Burst Pressure: 149.39 psi, 10.3 bar
• Primary Application: SCHROEDER K10
• Weight: 1.2 LB
