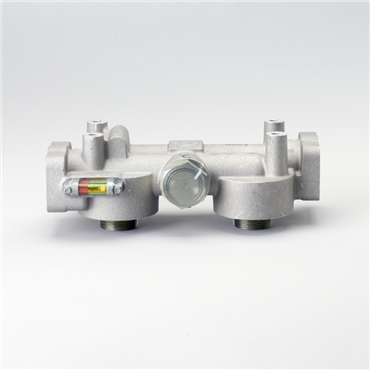

Donaldson P167297 Head Assembly

Product Description

The Donaldson P167297 is a head assembly designed for mounting spin-on filters in-line. This product features a cast aluminum head that ensures easy installation.

• SAE-24 inlet size
• SAE-24 outlet size
• Bypass valve included

Product Highlights

This head assembly is suitable for HMK05/25 series engine applications.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100178306

Technical Specifications

• Bypass Valve Setting LR: 24.66 psi, 1.7 bar
• Thread Size: 1 3/4-12 UN
• Height: 6.29 inches, 159.77 mm
• Inlet Size: SAE-24
• Family Name: HMK05/25 Series Engine Cylinder Head Assembly
• Bypass Valve: Yes
• Filter Series: HMK05/25
• Length: 12.02 inches, 305.31 mm
• Weight: 7.9 lb
• EAN or UPC: 742330018200
