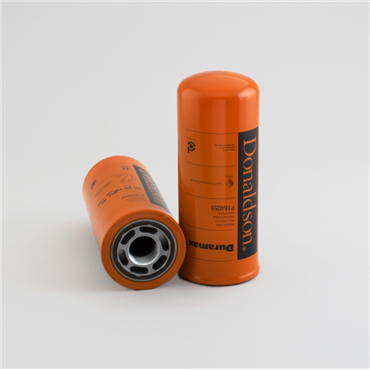

Donaldson P164059 Spin-On Fuel Filter

Product Description

The Donaldson P164059 is a spin-on fuel filter designed for hydraulic applications. This filter is compatible with various filter manufacturers like Gresen and Cross. It is known for its low cost and high efficiency.

• Outside diameter measures three point eight two inches
• Uses a thread size of one three eighths - twelve UN
• Features a spin-on style for easy installation

Product Highlights

Provides an increased dirt holding capacity, ensuring a longer life for the filter element.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 100178143
• Availability: Ready to ship, typically ships within 24 hours

Technical Specifications

• Filter Series: HMK04/24
• Thread Size: 1 3/8-12 UN
• Efficiency Test Standard: ISO 16889
• Outside Diameter: 3.82 inches (97 mm)
• Element Description: Hydraulic Spin-On
• Gasket ID: 2.48 inches (63 mm)
• Media Type: Synthetic
• Length: 9.44 inches (239.78 mm)
• Efficiency Beta: 22 Micron @ Beta 1000
