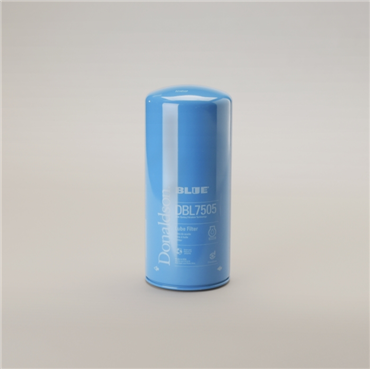

Donaldson DBL7505 Spin-On Fuel Filter

Product Description

The Donaldson DBL7505 is a spin-on fuel filter designed for effective filtration in various engines. This filter features a full-flow design, ensuring a consistent fuel supply while capturing impurities. The thread size of one and one-half inch by sixteen UN allows for easy installation on compatible models.

• 5.35 inches Outside Diameter
• Full-Flow Filter Design
• One and One-Half Inch by Sixteen UN Thread Size

Product Highlights

The Donaldson DBL7505 provides high filtration efficiency with its advanced media type and is suitable for diesel and gasoline applications.

Product Information

Standard Information

• Brand: Donaldson
• Part Number: 113111588

Technical Specifications

• Media Type: Synteq
• Outer Diameter: 5.35 inches (136 mm)
• Length: 12.13 inches (308 mm)
• Thread Size: 1 1/2-16 UN
• Gasket ID: 3.94 inches (100 mm)
• Gasket OD: 4.33 inches (110 mm)
• Efficiency: 99% at 15 microns
• Weight: 4.08 pounds
