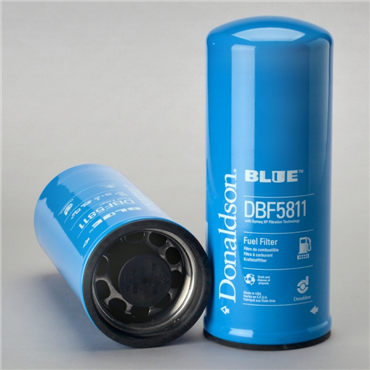

Donaldson DBF5811 Spin-On Fuel Filter

Product Description

The Donaldson DBF5811 is a Spin-On Fuel Filter designed for efficient filtering in fuel systems. It features a diameter of four point six five inches and a thread size of M90 x 2. This filter is constructed to meet the demands of various fuel applications, ensuring reliable performance.

• Outer diameter of four point six five inches
• Thread size of M90 x 2
• Secondary type filter

Product Highlights

This Spin-On Fuel Filter offers high efficiency, filtering particles down to four microns, making it suitable for both commercial and personal use.

Product Information

Standard Information

• Brand: Donaldson
• Availability: Ready to Ship

Technical Specifications

• Outer Diameter: 4.65 inches (118 mm)
• Length: 11.69 inches (297 mm)
• Thread Size: M90 x 2
• Efficiency Test Standard: SAE J1985
• Efficiency 99%: 4 microns
• Collapse Burst Pressure: 149.39 psi (10.3 bar)
• Gasket OD: 4.69 inches (119 mm)
• Gasket ID: 4.02 inches (102 mm)
• Media Type: Synteq XP
• Weight: 4.667 pounds
• EAN or UPC: 742330984994
