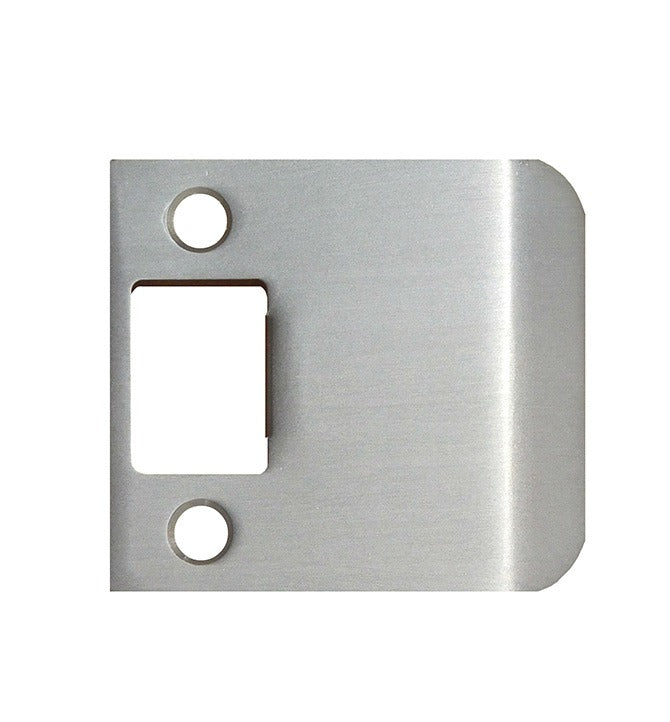

Don-jo EL102630 Full Lip Strike Satin Stainless Steel

Product Description

The DON-JO EL102630 is a full lip strike designed for commercial and residential door hardware applications where a standard lip strike does not provide adequate latch engagement. The strike features a 2.25-inch lip with a 2-inch extended lip, giving the latch more clearance from the door stop — a critical dimension on thick-framed or offset installations. Finished in satin stainless steel, the EL102630 resists corrosion and maintains a professional appearance in high-traffic environments. Locksmiths, door hardware installers, and commercial contractors install this type of strike as part of a mortise or cylindrical lockset assembly.

The EL102630 is suited for both new construction and retrofit door hardware projects where an extended lip is required to properly capture the latch bolt. It is commonly specified in commercial office, institutional, and light industrial settings where door frames have deeper-than-standard stops or where existing short-lip strikes have caused latch alignment issues. The satin stainless steel finish is appropriate for stainless-trimmed door hardware systems.

Key Features

• 2.25-inch full lip with 2-inch extended lip for deep door stop clearance
• Satin stainless steel finish for corrosion resistance in high-traffic applications
• Extended lip design accommodates offset frames and non-standard door stop depths
• Compact profile at 0.45 inches height for flush frame installation
• Sold individually, with case quantity of 10 units available

Compatibility

Designed as an OEM-style replacement or new-installation full lip strike for cylindrical and mortise lockset assemblies requiring an extended lip configuration.

Installation Notes

Installation is performed by licensed locksmiths or qualified door hardware technicians. Ensure the door and frame are properly aligned before marking and chiseling the mortise for the strike plate. Verify latch throw depth and door stop offset match the 2-inch extended lip dimension before installation. Follow applicable building and fire code requirements, including NFPA 80 for fire-rated door assemblies where applicable.
