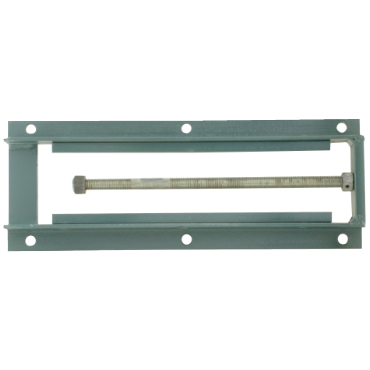

Dodge WS400X3TUFR Side Mounted Take-Up Frame

Product Description

The Dodge WS400X3TUFR is a side mounted take-up frame designed for use with belt and chain conveyors. This frame provides a travel of three inches and has a dimension of ten and three-fourths inches in length, eight and thirteen-sixteenths inches in width, and a height of two and one-fourth inches.

• Travel: 3 inches
• Overall height: 2.25 inches
• Flange thickness: 0.1875 inches

Product Highlights

This product is effective in aligning conveyor belts and provides reliable movement in operation. It is suitable for use in various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: WS400X3TUFR

Technical Specifications

• Overall Height: 2.25 inches
• Flange Thickness: 0.1875 inches
• Bolt Hole Spacing - Width: 7.3125 inches
• Base Width: 8.8125 inches
• Travel: 3 inches
• Bolt Hole Spacing - Length: 8.5 inches
• Frame Length: 10.75 inches
• Weight: 10.13 pounds
• EAN or UPC: 782475583768
