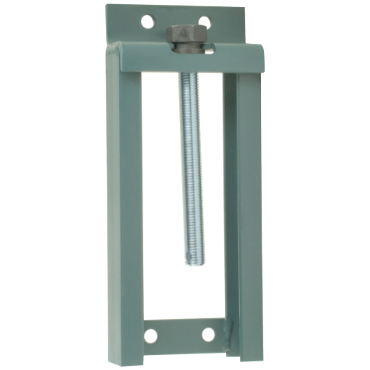

Dodge NS400X9TUFR Side Mounted Take-Up Frame

Product Description

The Dodge NS400X9TUFR is a side mounted take-up frame designed for belt and chain conveyors. This product has a travel length of nine inches and overall dimensions of eighteen and five-eighths inches long, six and one-sixteenth inches wide, and two inches high.

• Travel: 9 inches
• Overall Length: 18.6250 inches
• Weight: 11.15 pounds

Product Highlights

This take-up frame is suitable for various conveyor systems, providing reliable operation and easy installation.

Product Information

Standard Information

• Brand: Dodge
• MPN: NS400X9TUFR
• Category: Side Mounted Frames
• Part Number: 100738406

Technical Specifications

• Travel: 9 inches
• Base Width: 6.0625 inches
• Flange Thickness: 1/4 inch
• Overall Height: 2 inches
• Frame Length: 18.6250 inches
• Bolt Hole Spacing - Width: 2.5 inches
• Bolt Hole Spacing - Length: 17.1250 inches
• Weight: 11.15 pounds
• EAN or UPC: 782475019069
