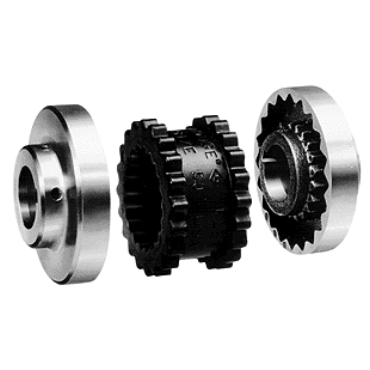

Dodge 8NELEMENT 8N ELEMENT | D-Flex Coupling Insert

Product Description

The Dodge 8NELEMENT is a D-Flex Coupling Insert designed for efficient coupling applications. This element features interchangeable components for quick installation and a snug fit. It requires no lubrication and avoids metal-to-metal contact during operation.

• Size 8, Type N Coupling Sleeve
• Easy installation with reduced maintenance
• Durable neoprene material for various applications

Product Highlights

The D-Flex Coupling Insert is ideal for clean and quiet performance. Rounded edges enhance tooth engagement, ensuring even load distribution to reduce stress build-up at the edges.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943223

Technical Specifications

• Coupling Size: 8
• Sleeve Type: N
• Material: Neoprene
• Torque Rating [Max]: 1,135 in lb
• HP @ RPM: 32.4 hp @ 1800 rpm
• RPM [Max]: 4,500 rpm
• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 200 °F
• Weight: 1.43 LB
• Outside Diameter: 5.0625 in
• Width: 2 1/2 in
• Torsional Stiffness: 4335 Inch Pounds/Radian
• EAN or UPC: 782475876440
