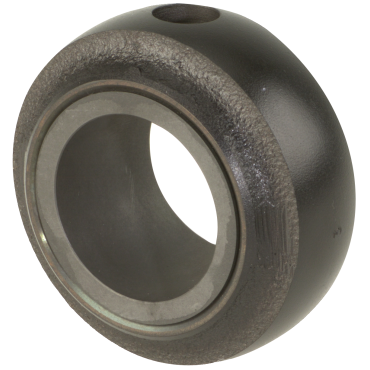

Dodge 3/4LT700INSERT Solidlube Sleeve Bearing Insert

Product Description

The Dodge 3/4LT700INSERT is a solid lube sleeve bearing insert designed for high-performance industrial applications. This product features a diameter of three-quarters of an inch, with an outer dimension of one point eight four four five inches. The insert operates effectively in extreme environments, including high heat and cold temperatures.

• Temperature range from negative two hundred degrees Fahrenheit to one thousand degrees Fahrenheit.
• Open (unsealed) design without a locking device.
• Constructed from steel and non-lubricated for extended durability.

Product Highlights

The self-lubricating and statically self-aligning design makes it suitable for difficult operational settings.

Product Information

Standard Information

• Brand: Dodge
• MPN: 3/4LT700INSERT

Technical Specifications

• Bearing Type: Sleeve Bearing
• I.D.: 0.750 inches
• Material: Steel
• Bore Type: Round Bore
• Length Through Bore: 1 inch
• Outer Ring Width: 5/8 inches
• Seal Type: Unsealed
• O.D.: 47 mm
• Inch/Metric: Inch Bore
• Lubrication: Non-Lubricated
• Enclosure: Open
• Overall Width: 1 inch
• Rolling Element: Sleeve Bearing
• Locking Device: No Locking Device
• Weight: 0.39 LB
• EAN or UPC: 782475242108
