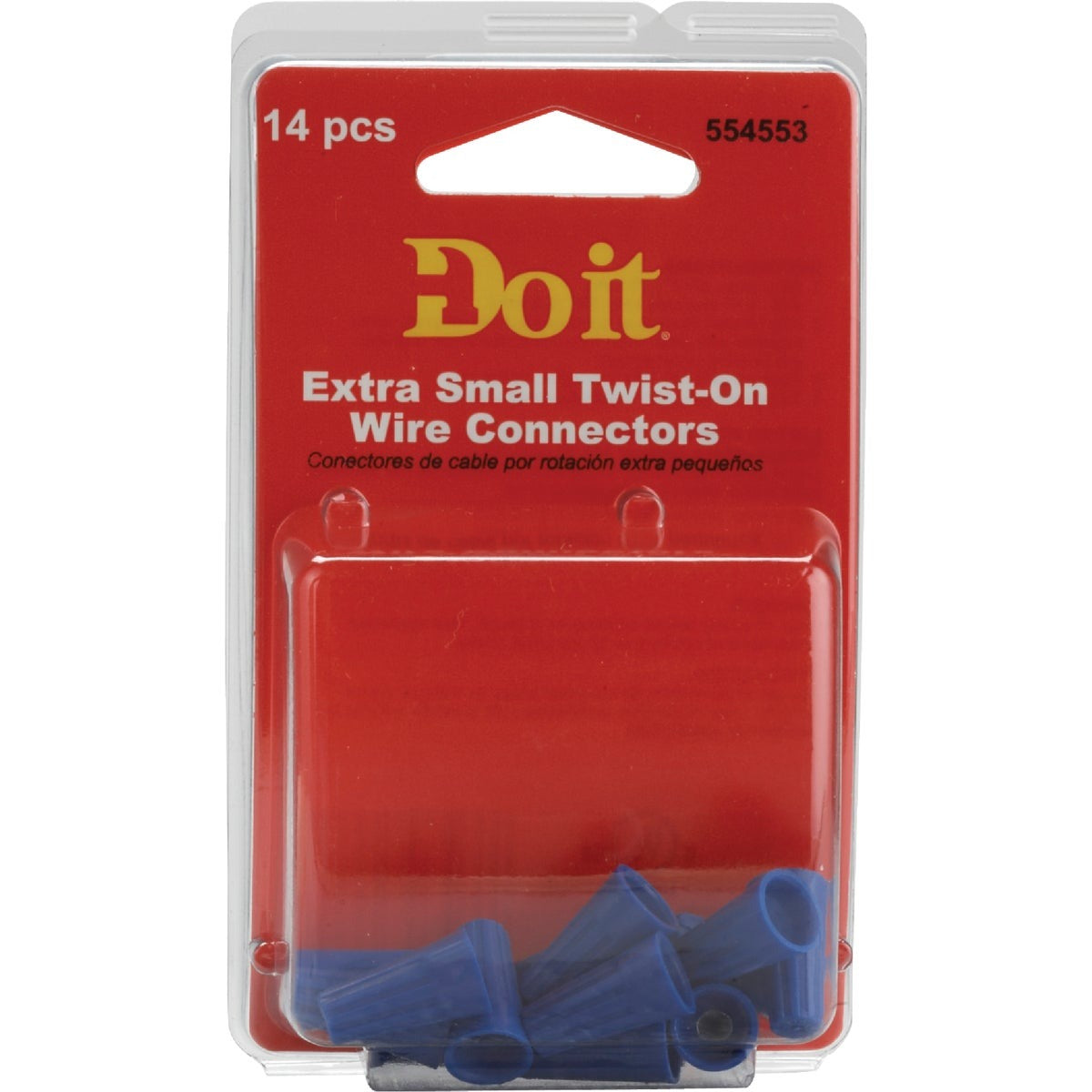

Do It Best 554553 Extra Small Wire Cap Connector

Product Description

The DO IT BEST 554553 is an extra small twist-on wire cap connector designed for making quick, secure splices in residential and light commercial electrical wiring. The connector features a tough thermoplastic shell rated for both 300 volts and 600 volts, giving it flexibility across common low-voltage and standard-voltage applications. A deep skirt design shields bare wire ends from accidental contact and provides superior flash-over protection. The high dielectric shell is built to hold up against environmental stress. This connector splices copper to copper and is UL 486C listed and CSA certified, as well as compliant with Federal specification W-S-610d.

This connector is suited for residential electrical work, light commercial wiring, and general-purpose splice applications where a compact, reliable cap connector is needed. Electricians and skilled DIYers use this style of connector when terminating branch circuit wiring, fixture leads, or control wiring inside junction boxes, panels, or enclosures. Its extra small size makes it appropriate for smaller gauge wire combinations. The card-packaged single-unit format is useful for service calls and small repair jobs.

Key Features

• Dual voltage rating: 300 volts and 600 volts for broad application compatibility
• Deep skirt thermoplastic shell prevents bare wire exposure and reduces flash-over risk
• High dielectric construction shields against environmental extremes
• Copper-to-copper splice design for reliable, low-resistance connections
• UL 486C listed and CSA certified for code-compliant installations
• Complies with Federal specification W-S-610d

Compatibility

Designed as an OEM-style replacement and general-use twist-on wire connector for copper-to-copper splices in residential and light commercial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician or qualified individual in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit and verify with a voltage tester before making or disturbing any wire connections. Strip wire ends to the appropriate length per the connector manufacturer guidelines, insert conductors fully, and twist the cap clockwise until snug. Do not overtighten or use on aluminum conductors, as this connector is rated for copper-to-copper connections only.
