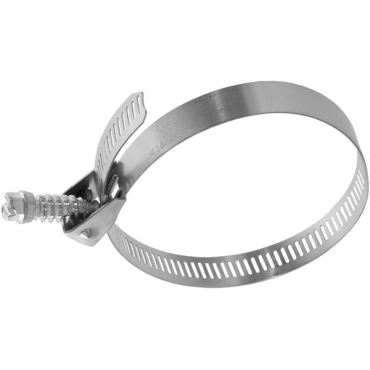

Dixon Valve & Coupling LS128 Quick Release Worm Gear Clamp

Product Description

The Dixon Valve & Coupling LS128 is a Quick Release Worm Gear Clamp designed for hose applications. This clamp provides a secure hold while allowing for easy adjustments. It fits hoses with an outer diameter range from one and forty-eight sixty-fourths inches to eight and thirty-six sixty-fourths inches. The band width is half an inch, providing a snug fit on various hoses.

• Fits hoses with an outer diameter from one and forty-eight sixty-fourths inches to eight and thirty-six sixty-fourths inches
• Constructed from 301 stainless steel for durability and resistance to corrosion
• Features hardened carbon steel for the screw material, ensuring a reliable grip

Product Highlights

This worm gear clamp combines high-quality materials and design for effective usage in various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101895346

Technical Specifications

• Hose O.D. Range: 1 48/64 to 8 36/64
• Bolt/Screw Size: 5/16 in
• Bolt/Screw Type: Slotted Hex Head
• Band Width: 0.5 in
• Screw Material: Hardened Carbon Steel
• Style: LS Style
• Torque: 30 in lb
• Housing Material: Stainless 300 Series
• Bolt/Screw Material: Carbon Steel
• Band Material: 301 Stainless Steel
• Weight: 0.1 LB
