Dixon Valve 15 - DIXON VALVE 15

Product Description

Dixon Valve 15 includes various products suitable for multiple applications. This range encompasses a 15-ton ram that utilizes hydraulic pressure for internally expanding couplings, pressure-reducing valves for managing pressure, air relief valves for venting purposes, vacuum relief valves to avert tank implosion, and single bolt clamps to secure hoses. Each product is designed for a specific role with materials, pressure settings, and capacities adapted to their uses.

• Includes rams, pressure reducing valves, air and vacuum relief valves.
• Air and vacuum relief valves designed for trailer tanks containing dry bulk products.

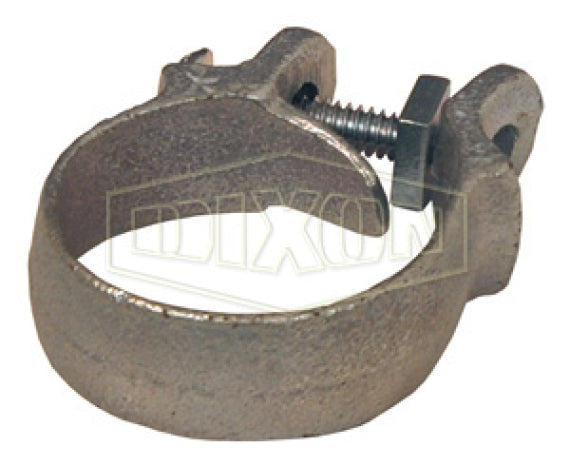

• Single bolt clamps secure hoses effectively.

Product Highlights

These units offer essential functionality across various applications serving HVAC, plumbing, and industrial needs.

Product Information

Standard Information

• Brand: Dixon Valve
• MPN: 15

Technical Specifications

• Material: Cast Brass
• Inlet Pressure: Max 225 PSIG
• Inlet: 1-1/2 female NPT
• Outlet: 1-1/2 male NST (NH)
• Approvals: UL & ULC Listed
• Relieving capacity: 500 to 950 SCFM
• Set Pressure Tolerance: +/- 0.5 HG
• Weight: 8.55 lb
• Component Material: Red Silicone Diaphragm
• Female Thread: NPT
• Pressure Setting: 15 PSI
• Minimum Clamp I.D.: 2.25
• Maximum Clamp I.D.: 2.40625
• Torque: 12 in ft. lbs.
• Ram Force: 15 tons
• Motor: 1/2 hp, 115 volt, 60 cycle, single phase with foot pedal
• Mounting: Bench mounted
