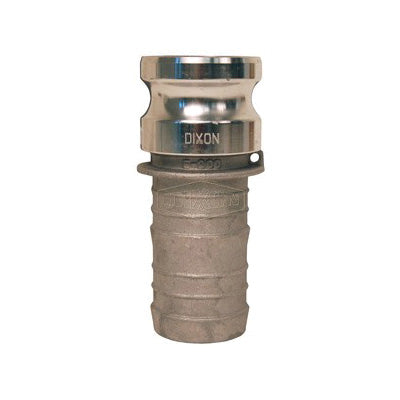

DIXON G200-E-AL 2 Aluminum Cam and Groove Type E Adapter

Product Description

The DIXON G200-E-AL is a two-inch Type E adapter featuring a male adapter x hose shank end style. This adapter is made of A380 permanent mold aluminum and is designed specifically for liquid applications. It allows quick connections by sliding into a coupler and pressing down on the cam levers for a secure fit. To uncouple, simply lift the cam arms and remove the adapter.

• Features a male adapter x hose shank end style for easy connection.
• Enables quick and easy connection and uncoupling with cam levers.
• Rated for liquid applications with a pressure rating of 250 psi at seventy degrees Fahrenheit.

Product Highlights

This adapter is manufactured to meet Dixon specifications and is compatible with all products made to the A-A-59326D standard.

Product Information

Standard Information

• Brand: Dixon
• Weight: 0.7 lbs

Technical Specifications

• Type: Type E
• Nominal Size: 2 inches
• End Style: Male Adapter x Hose Shank
• Material: Aluminum
• Length: 5-23/32 inches
• Pressure Rating: 250 psi
• Application: Designed for use with liquids
• Part Number: G200-E-AL
• Unit Count: 1
