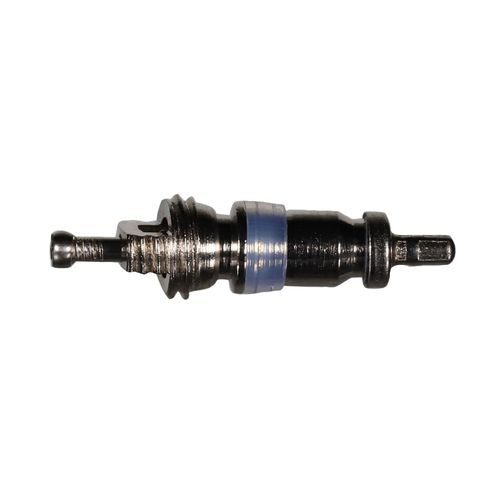

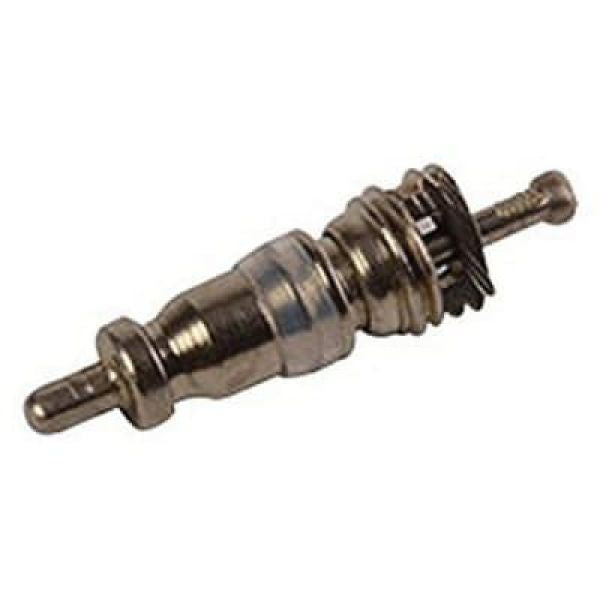

Diversitech VVC1 Valve Core 6 Pack

Product Description

The Diversitech VVC1 valve core is a pack of 6 replacement valve cores. Constructed from stainless and brass, these cores offer flexible positioning and are convenient and easy to use. They can be installed in any position on either the high or low side for charging, purging, quick testing, or pressure checking. These valve cores are suitable for use with R-12, R-22, R-123, and R-502 refrigerants.

• Stainless and brass construction
• Flexible positioning
• Convenient and easy to use

Product Highlights

Low-cost port for refrigeration servicing. May be installed in any position for charging, testing or pressure checking.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: VVC1
• Country of Origin: Import

Technical Specifications

• Manufacturer: DiversiTech Corporation
• Brand: Diversitech
• MPN: VVC1
• Number of Items: 1.0
• Material: Brass
• Ducted or Ductless: Both Ducted and Ductless
• Flare Size: 1/4 in.
• Temperature Rating: -58 to 302 deg F
• Pressure Rating: 0 - 500 lbf/sq-in
• Accessory Type: Valve Core
• Domestic/Import: Import
• Finish: Nickel Plated
• Suitable For Use With: R-12/R-22/R-123 and R-502 Refrigerant
• Connection Type: SAE Male Flared
• Nominal Size: 1/4 in
• Product Features: Convenient Low Cost Port for Refrigeration Servicing; May be Installed in any Position on Either High or Low Side for Charging, Purging, Quick Testing or Pressure Checking; Diversitech Access Fitting have 1/4 Inch SAE Male Flare Access Ports and Include a Quick Seal Cap and a Stainless and Brass Special Refrigerant Valve Core
• Size: 1/4 Inch SAE Male Flare
• Used On Item: Refrigerant System
• Used On Model Brand: R12/R22/R123/R124/R134/R402/R404/R407/R410/R500/R502
