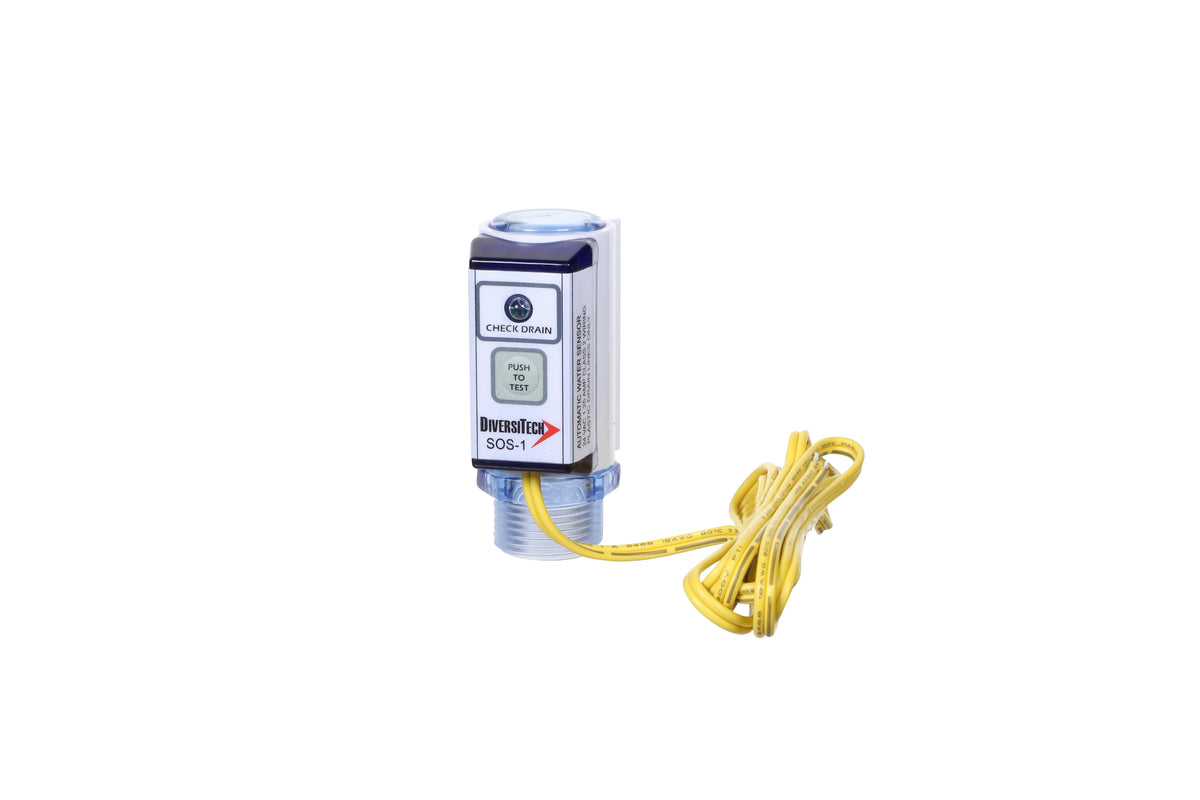

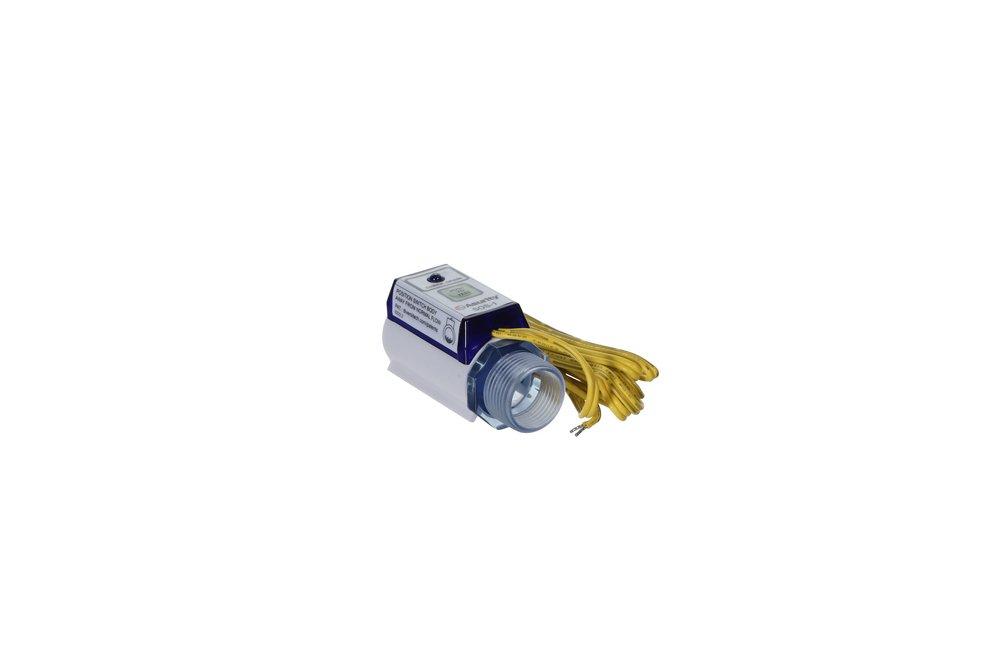

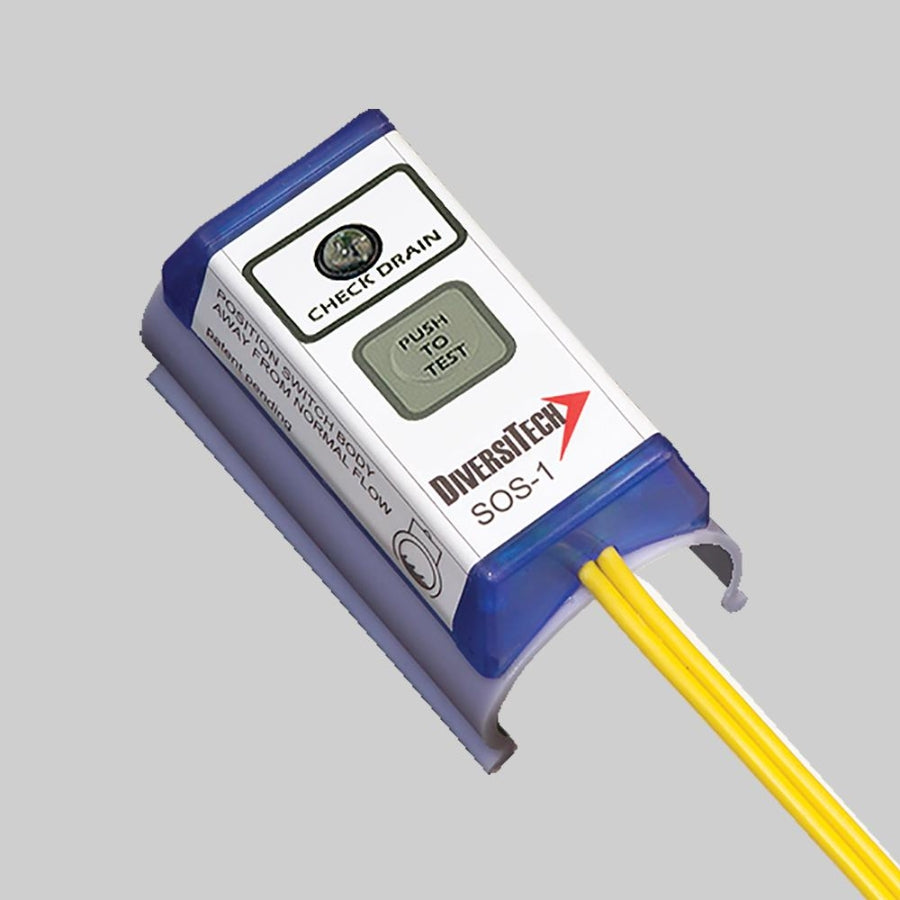

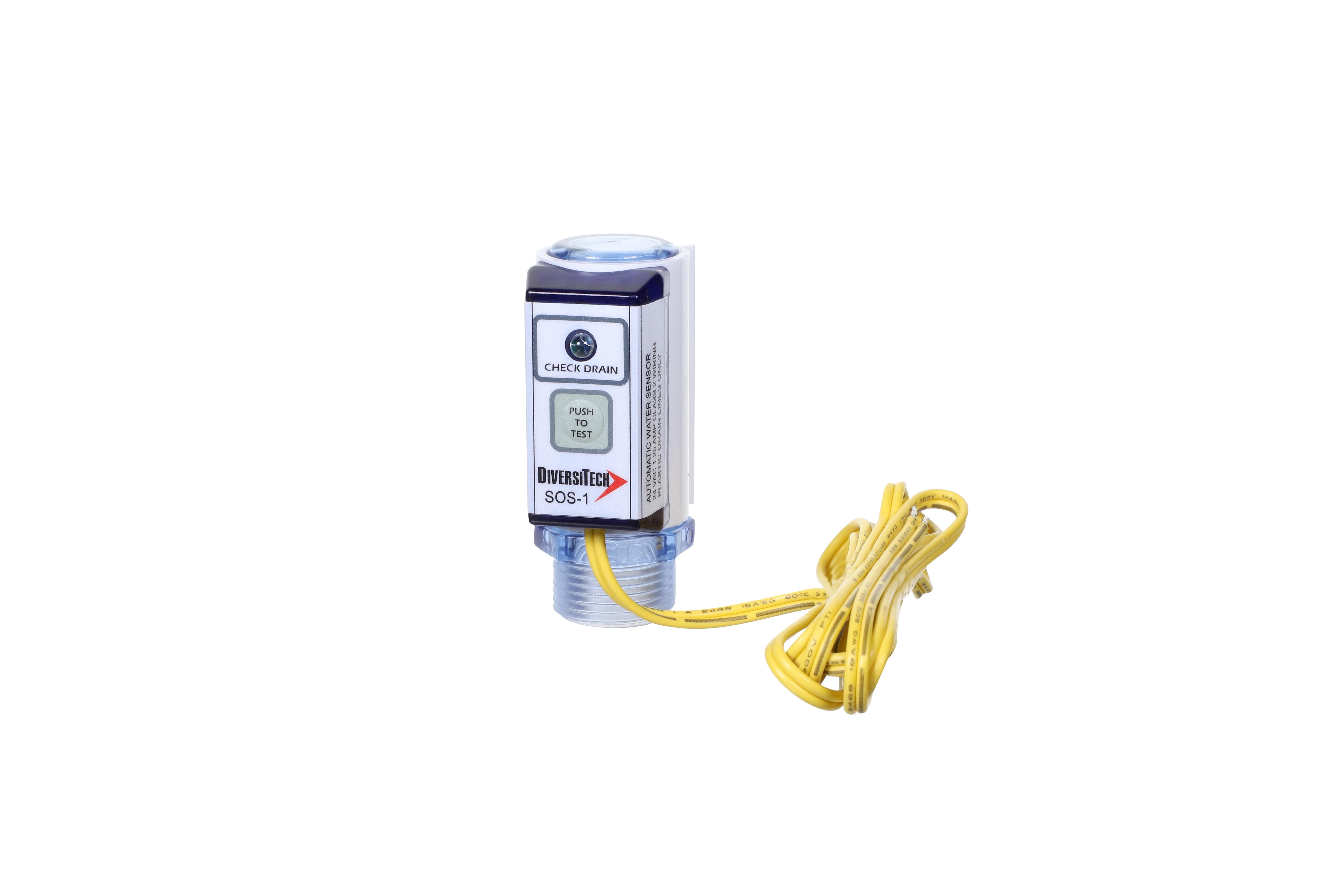

Diversitech SOS-1 Air Conditioner Heater Safety Overflow Switch

Product Description

The Diversitech SOS-1 Safety Overflow Switch is designed for use on three-fourths inch PVC condensate drain lines. This switch is easy to install, snapping over existing drain line tubing and can be secured with PVC cement. It electronically detects water near the inside of the PVC tubing. When properly positioned away from normal water flow, it can sense an overflow condition when the drain line reaches capacity. The SOS-1 operates with 24 VAC control circuits and typical contactors.

• Normally closed operation allows standard air conditioner function
• LED indicator alerts for potential system issues
• Can be mounted in any orientation

Product Highlights

Integrate this overflow switch into your condensate management system to prevent water damage efficiently.

Product Information

Standard Information

• Brand: Diversitech
• MPN: SOS-1

Technical Specifications

• Voltage Rating: 24 VAC
• Amperage Rating: 1.25 A
• Number of Wires: 2
• Material: ABS
• Wire Length: 5 ft
• Color: Gray
• Type: Safety Overflow Switch
• UPC: 095247092307
