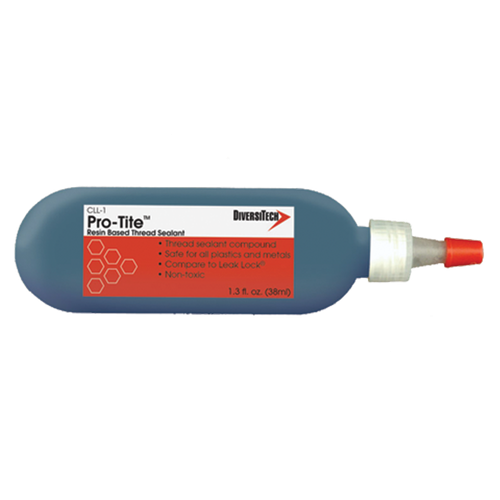

Diversitech cll-1 Thread Sealant 1.33 Oz Tube

Product Description

The DIVERSITECH cll-1 is a resin-based, alcohol-carrier thread sealant packaged in a 1.33 oz squeeze tube. It adheres to internal thread surfaces and fills voids to form a flexible, fluid-tight seal. Rated for temperatures from -100 degrees F to 400 degrees F and pressure service from full vacuum up to 10,000 psi, it handles the wide range of conditions found in HVAC, refrigeration, and plumbing systems. The compound is impervious to most chemicals, including refrigerants, petroleum products, gases, and steam. Licensed HVAC technicians and plumbers apply it when making threaded connections on both metal and plastic fittings subject to extreme vibration.

The cll-1 is suited for threaded connections in residential and commercial HVAC and plumbing applications where standard pipe dopes may fail due to vibration, thermal cycling, or chemical exposure. Its compatibility with refrigerants makes it a practical choice for refrigerant-line fittings, service valves, and related components. The squeeze tube format allows controlled, targeted application in tight spaces typical of equipment service work.

Key Features

• Resin-based formula adheres to internal surfaces and fills thread voids for a fluid-tight seal
• Rated from -100 degrees F to 400 degrees F, covering cryogenic to high-heat service
• Withstands full vacuum to 10,000 psi pressure range
• Impervious to refrigerants, petroleum products, gases, and steam
• Formulated for metals and plastics under extreme vibration conditions
• Alcohol-based carrier; 1.33 oz squeeze tube for precise application

Compatibility

Designed for use on threaded metal and plastic fittings in ducted and ductless HVAC systems, refrigeration equipment, and plumbing assemblies where resistance to refrigerants, petroleum products, and high vibration is required.

Installation Notes

Apply to clean, dry threads before assembly; remove oil, grease, and old sealant residue prior to use. Licensed HVAC technicians and plumbers should follow applicable codes, including IFGC and IPC, when sealing gas or water service connections. Allow adequate cure time before pressurizing the system. Avoid contact with open flame during application, as the alcohol-based carrier is flammable until fully cured.

Technical Specifications

• Material: Resin Based
• Container Size: 1.33 oz
• Container Type: Squeeze Tube
• Temperature Range: -100 degrees F to 400 degrees F (-73 degrees C to 204 degrees C)
• Pressure Range: Full vacuum to 10,000 psi
• Carrier: Alcohol Based
• Application: Ducted and Ductless Systems

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: cll-1
