Product Description

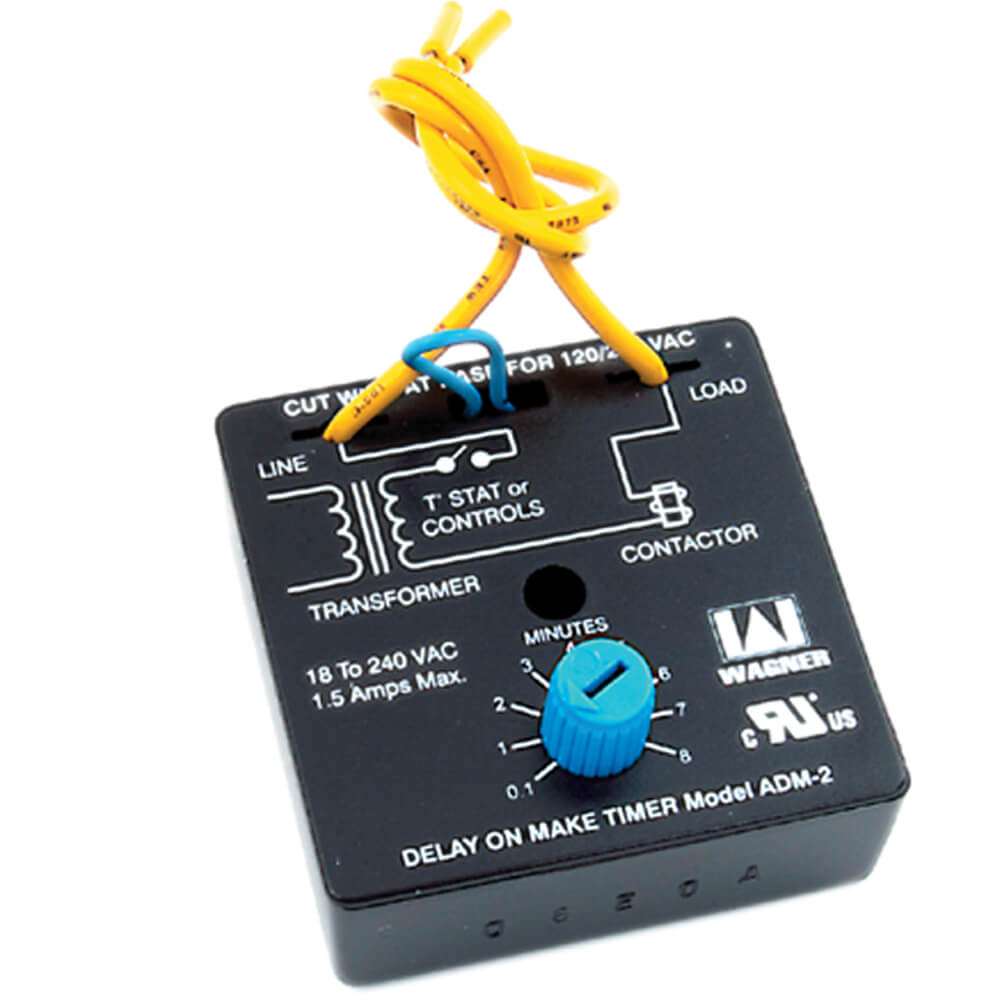

The DiversiTech ADM-2 Adjustable Delay on Make Timer is designed for use in electrical control circuits. Its adjustable delay feature ranges from 6 seconds to 8 minutes, making it versatile for various applications. This timer supports 24, 120, and 240 VAC control circuits and can handle up to 1.5 amps, all with a simple two-wire hookup.
- Adjustable delay from 6 seconds to 8 minutes
- Supports 24, 120, and 240 VAC circuits
- Easy installation with two-wire hookup
Product Highlights
Ideal for random starting of multiple units, the DiversiTech ADM-2 Timer features a spin-proof knob and solid-state quick-disconnect terminals. Its conformal coated circuitry protects against moisture and shock, and it mounts easily with one self-tapping screw. Recognized by UR for use in the US and Canada, it works with anticipator type thermostats.
Product Information
Standard Information
-
Brand: DiversiTech
-
MPN: ADM-2
Technical Specifications
-
Amperage: 1.5
-
Adjustable Delay: 6 seconds to 8 minutes
-
Voltage: 24, 120, 240 VAC
-
Installation: Two-wire hookup
-
Dimensions: 5.25 inches (length) x 3 inches (width) x 1.25 inches (height)
-
Weight: 0.21 lbs
