Southwire 58225705 14/4S Stranded Tray Cable Mini-Split 600V (50 ft Roll)

SOUTHWIRE
Brand: SOUTHWIRE
SKU: 58225705
Availability: In Stock

Ships same day if ordered by 12 pm
$86.17
$86.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

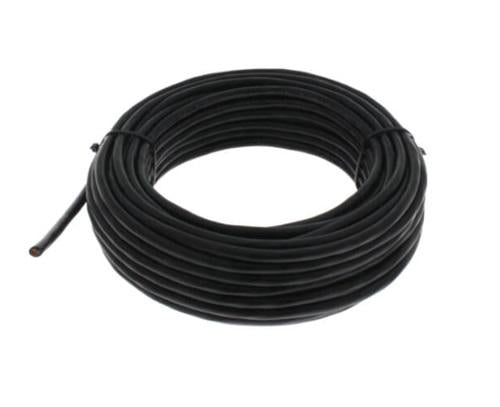

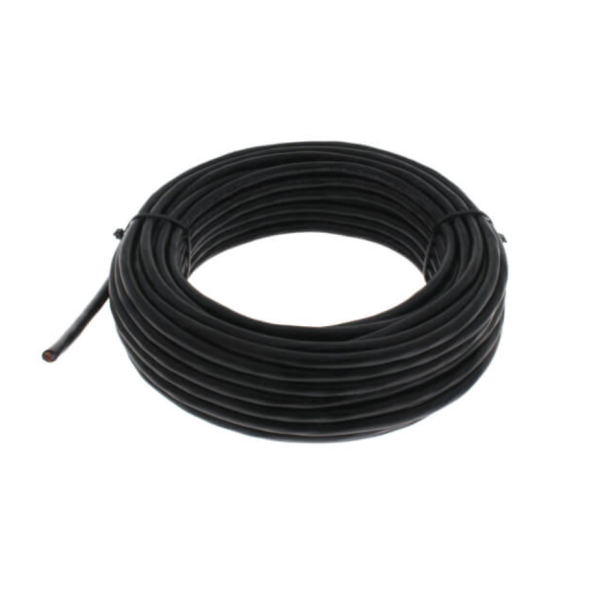

Southwire 58225705 is a 14 AWG, 4-conductor stranded tray cable rated 600 V supplied as a 50 ft roll for mini-split HVAC applications. The cable features THHN/THWN-2 PVC-insulated conductors with a PVC jacket and is suitable for tray, conduit, duct, direct burial, or aerial messenger-supported installations. Temperature ratings include 90 C dry and 75 C wet; the construction supports TC-ER exposed runs and UL listing.

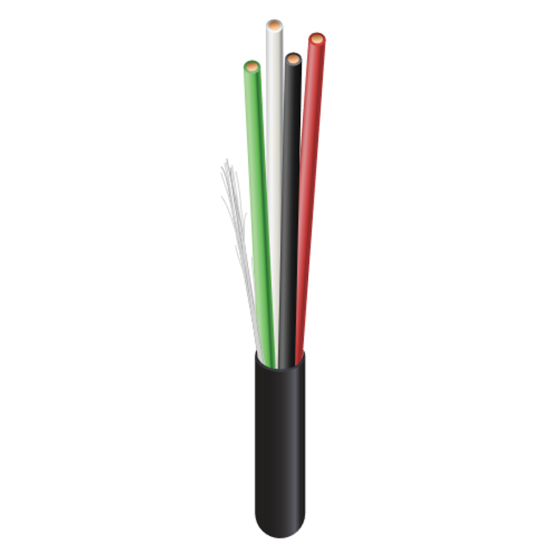

  • 14 AWG, 4-conductor stranded construction with copper conductors and THHN/THWN-2 PVC insulation
  • 600 V rating; continuous temperature ratings: 90 C dry, 75 C wet, 105 C emergency overload, 150 C short circuit
  • Suitable for mini-split HVAC control and power wiring in trays, conduit, ducts, direct burial, and aerial messenger-supported installations

Product Highlights

14 AWG 4-conductor stranded mini-split tray cable, 600 V, 50 ft roll, THHN/THWN-2 insulation, PVC jacket, UL listed

Product Information

Standard Information

  • Brand: SOUTHWIRE
  • Manufacturer Part Number: 58225705
Technical Specifications
Brand
Southwire
MPN
58225705
Product Type
Mini-split tray cable
Voltage Rating
600 V
Length
50 ft
Conductor Size
14 AWG
Number of Conductors
4
Conductor Material
Bare copper
Conductor Stranding
7 strands
Insulation
THHN/THWN-2 PVC (per conductor)
Jacket Material
PVC
Approx. Overall Diameter
0.351 in (0.89 cm)
Diameter Over Conductor
0.070 in (0.18 cm)
Insulation Thickness
20 mils (0.51 mm)
Jacket Thickness
45 mils (1.14 mm)
DC Resistance at 25 C
2.631 ohms/1000 ft
AC Resistance at 75 C
3.170 ohms/1000 ft
Minimum Bend Radius
1.4 in (3.56 cm)
Allowable Ampacity 75 C
16 A
Allowable Ampacity 90 C
20 A
Temperature Rating
-20 C to 90 C (dry); 75 C (wet)
Continuous Temperature Ratings
75 C wet; 90 C dry; 105 C emergency overload; 150 C short circuit
Standards / Certifications
ASTM B3; ASTM B8; UL 83; UL 1277; RoHS-3
Flame Rating
VW-1
Sunlight Resistance
Yes
Silicone Free
Yes
Listed
UL Listed
Typical Applications
HVAC mini-split control and power wiring
Installation Types
Cable trays, conduit, ducts, troughs, direct burial, aerial messenger-supported, exposed runs (TC-ER)
