Diode Led DI-CPCHA-SL48B Builder Channel Slim (48 in.)

Brand: DIODE LED
SKU: DI-CPCHA-SL48B
Availability: In Stock

Ships same day if ordered by 12 pm
$48.48
$48.48
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

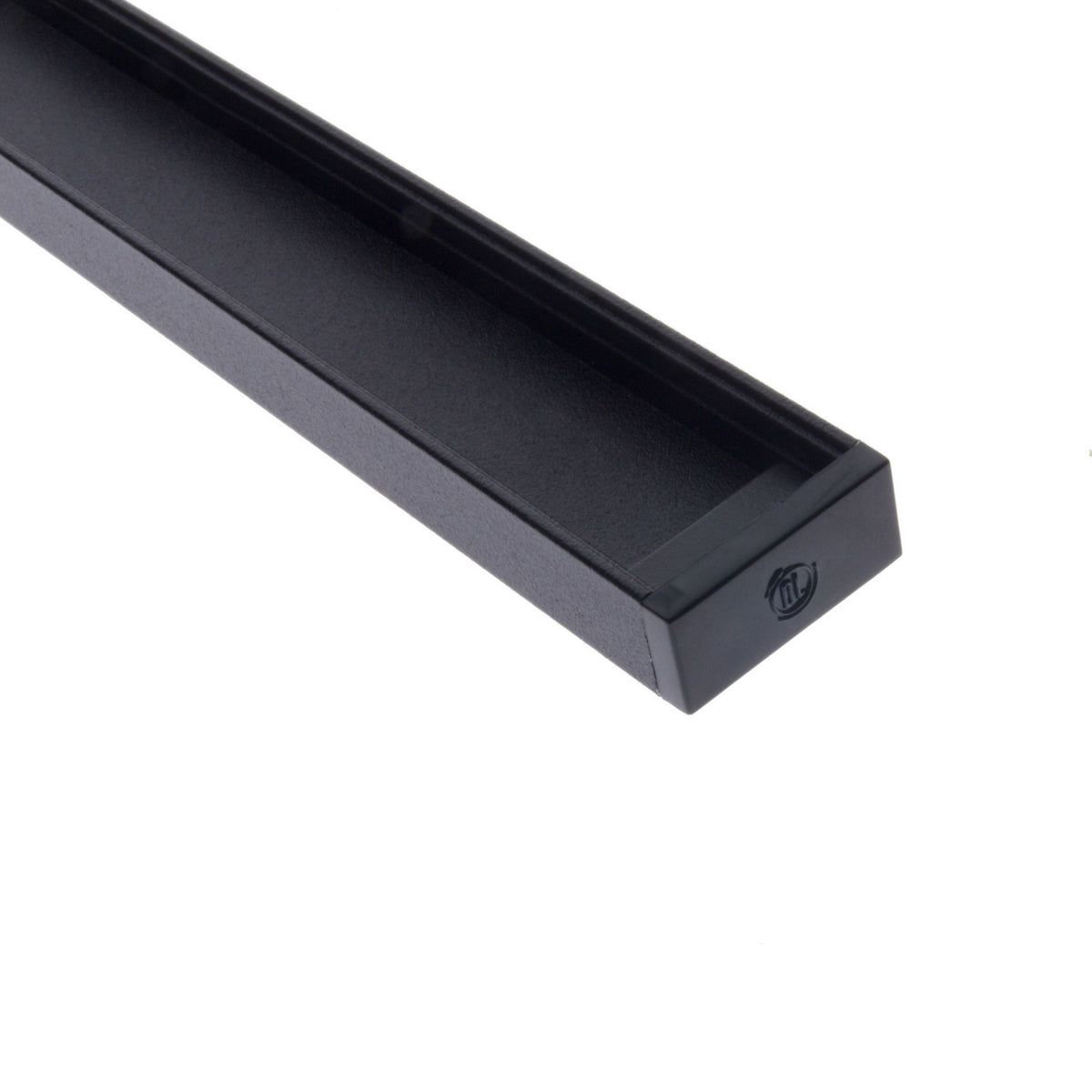

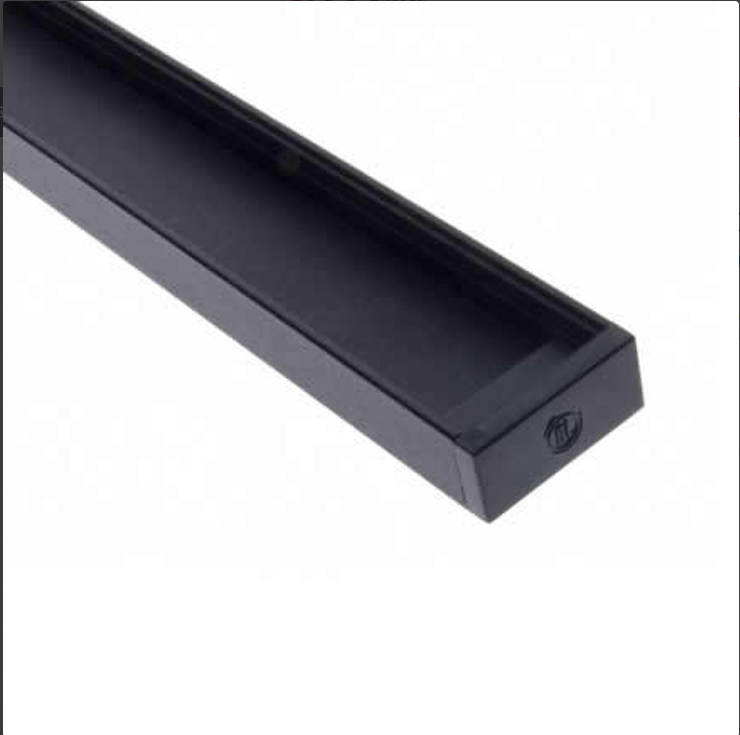

Diode LED DI-CPCHA-SL48B is a 48-inch slim builder channel designed to house and diffuse indoor LED tape light. The aluminum, matte-finish anodized channel provides a rigid, dust-proof housing that mounts to flat surfaces, is field cuttable, and can be joined end-to-end. End caps and covers are sold separately.

  • Slim anodized aluminum channel protects and diffuses LED tape light; designed for indoor installations
  • Rigid, dust-proof housing that mounts to flat surfaces; field cuttable and mountable end-to-end
  • End cap material: PVC (sold separately); cover material: polycarbonate (sold separately); mounting clips made of steel

Product Highlights

48-inch slim aluminum channel for mounting and diffusing LED tape light; field-cuttable with end caps and covers sold separately.

Product Information

Standard Information

  • Brand: DIODE LED
  • Manufacturer Part Number: DI-CPCHA-SL48B
Technical Specifications
Brand
Diode LED
Manufacturer
Diode LED
Manufacturer Part Number
DI-CPCHA-SL48B
Product Name
Builder Channel, Slim
Product Type
Channel component / profile for LED tape lighting
Material
Aluminum
Finish
Matte anodized aluminum (finish options: clear anodized, white gloss powdercoat, black satin powdercoat)
Length
48.00 in
Height
0.38 in
Width
0.82 in
Weight
0.60 lb
Field Cuttable
Yes
Mounting Type
Surface mount / mounts to flat surfaces
Housing
Rigid, dust-proof
Mounting Clip Material
Steel
End Cap Material
PVC (sold separately)
Cover Material
Polycarbonate (sold separately)
Bulbs Included
No
UPC
848333009853
Category
Lighting Accessories
MPN / SKU
DI-CPCHA-SL48B
