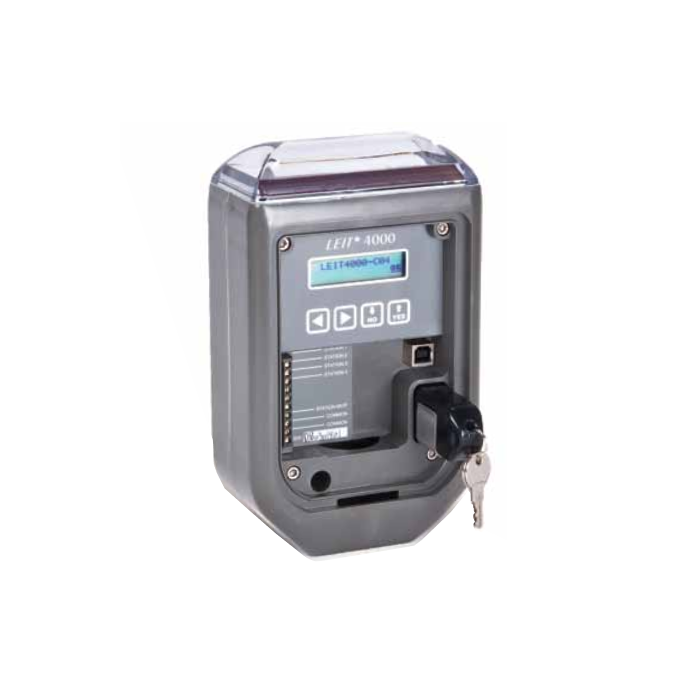

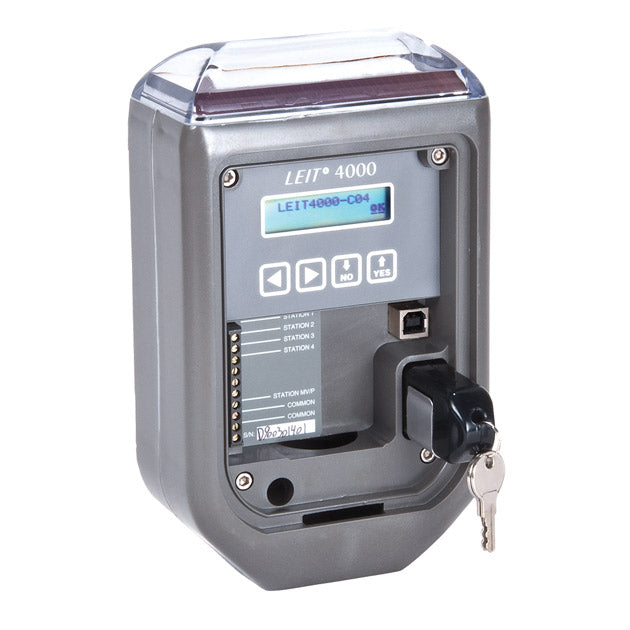

Dig LEIT 4004 Leit 4000 4 Station Controllers

Product Description

The DIG LEIT 4004 is a self-contained, water management irrigation controller that harnesses ambient light (solar) as a power source. The controller’s easy-to-navigate features include four independent programs with three start times for each valve and password-protected entry. A compact design and time-tested photovoltaic module harnesses ambient light energy to power the unit day and night.

• No AC power and no AC permit requirements
• Environmentally friendly; uses clean, renewable solar power
• Powered by photovoltaic module and internal microelectronic management system which collects light to produce pollution-free electricity that powers the controller day and night in any kind of weather conditions.

Product Highlights

This controller operates four stations and a master valve or pump start without an AC power hookup, batteries, or conventional solar panels. It features non-volatile memory and multilingual software.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: LEIT 4004

Technical Specifications

• Number of stations: 4, 6 and 8
• Power source: ambient light (PVM)
• Controller power input: 3,000 -100,000+LUX
• Four keypad buttons: with integrated liquid crystal display
• Station capacity: one LEMA 1700S per each set of red and white wire
• Operational temperature: 14 F to 140 F ( 10 C to 60 C)
• Storage temperatures range: 40 F to 194 F ( 40 C to 90 C)
• Sensor connection: normally closed, none active
• Material Controller housing and clear lens: high-impact plastic (polycarbonate)
• Watering durations: from 1 minute to 5 hours and 59 minutes
• Four programs: with three start times per program allows for mixed irrigation applications
• Custom programming: with 7-day calendar or intervals of 1-39 days in odd/even or every day rotation
• Status Report: for each valve verifies operating time for past and current month
• Rain delay: up to 99 days with auto-restart
• Water budgeting: from 10-200% in 10% increments
• Enclosure: Vandal-resistant, waterproof enclosure fashioned from very tough material
• Programming password: eliminates potential user error
• Password: can be changed at any time during program setup activation
• Security: Standard stainless steel lock secures weather resistant exterior panel
• Brand: DIG
• Expandability: Fixed
• Power Source: Solar Powered
• Application: Commercial
• Series: LEIT
• Zones: 4
• Type: Solar Powered
• Item: Controller
• Indoor/Outdoor: Outdoor
• Number of Programs: 4 Programs
• Sensor Compatible: Rain, Moisture & Freeze
• Start Times Per Programs: 3
• Regulated: No
