Product Description

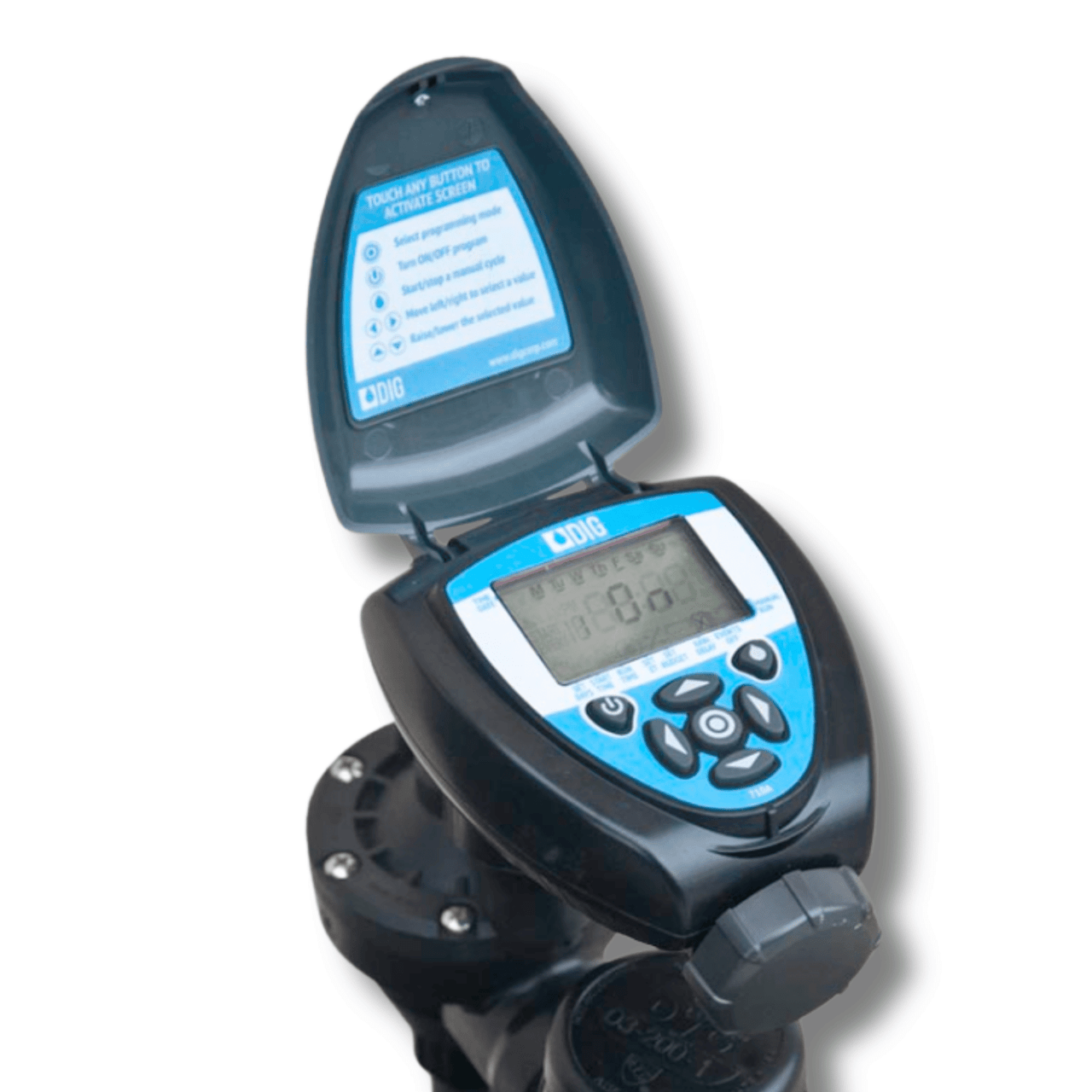

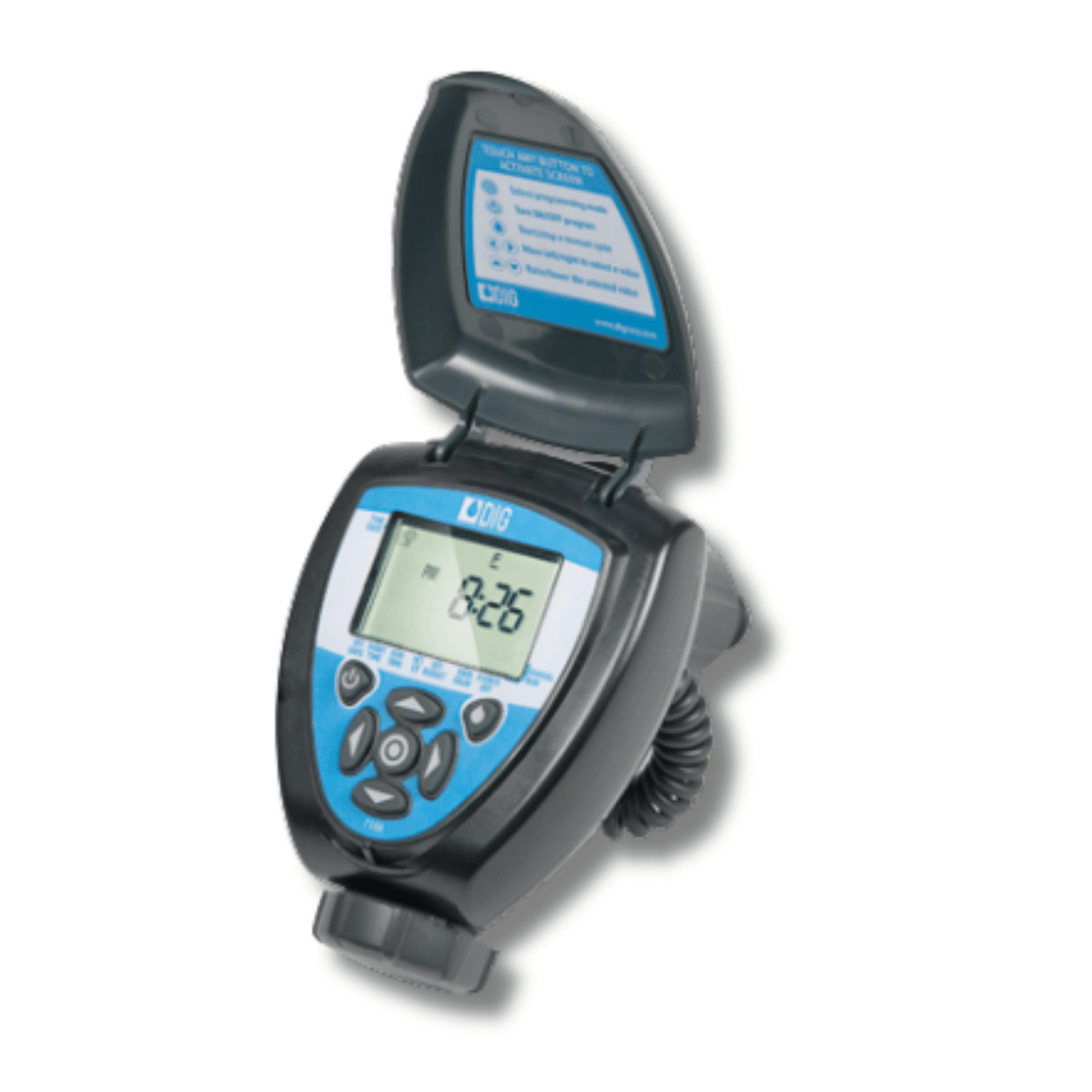

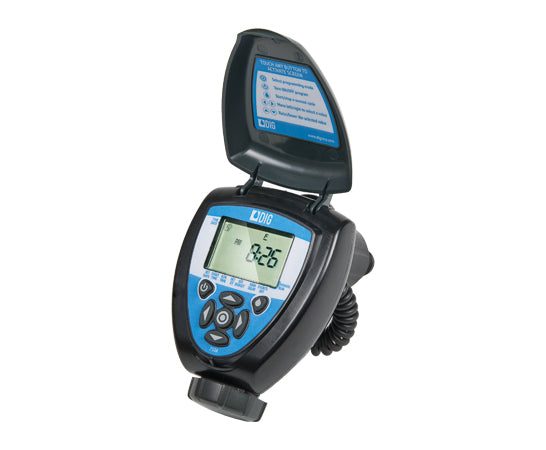

The DIG 710A-000 series single-station battery operated controller is waterproof and able to operate in harsh environments. Powered by two AA alkaline batteries, the controller offers programming flexibility for convenient and easy operation. It includes seven buttons with a large, easy-to-read LCD screen and icon-based programming with five start times per day in weekly or cyclical mode.
- Powered by two AA alkaline batteries with a 60 second safe period when replacing batteries that prevents the settings from being lost
- Watering flexibility with a selection of watering frequencies including weekly, odd, even, and cyclical with five start times per day
- Seven buttons with an integrated high-resolution screen
Product Highlights
Offers monthly budget, rain delay of up to 99 days with automatic restart, 20 preset smart programs utilizing historical ET, and monthly and daily programming restriction options.
Product Information
Standard Information
-
Brand: DIG
-
Manufacturer Part Number: 710A-000
Technical Specifications
-
Type: DC latch
-
Operating pressure with DIG globe inline valve 3/4" to 2": 10 to 150 PSI, (.7 to 10.5 bar)
-
Operating pressure with DIG anti-siphon valve 3/4" and 1": 20 to 150 PSI, (1.5 to 10.5 bar)
-
Power source: two AA alkaline batteries (not included)
-
Program mode: Seven keypad buttons with integrated liquid crystal display
-
Temperature range: 38°F to +130°F (3°C to +54°C)
-
Latching Solenoid: 6-12 VDC, two way, normally closed
-
Solenoid control orifice: .065 (1.65 mm)
-
Encapsulated solenoid thread: 11/16"-12 UN male thread
-
Retractable wire: 8.1" (coiled length when extended, approximately 36")
-
Compliance and approval: RoHS, IP68, I.A.P.M.O, UPC and ANSI
-
Sensor connection: normally closed 6" (15 cm) yellow wire (16 AWG)
-

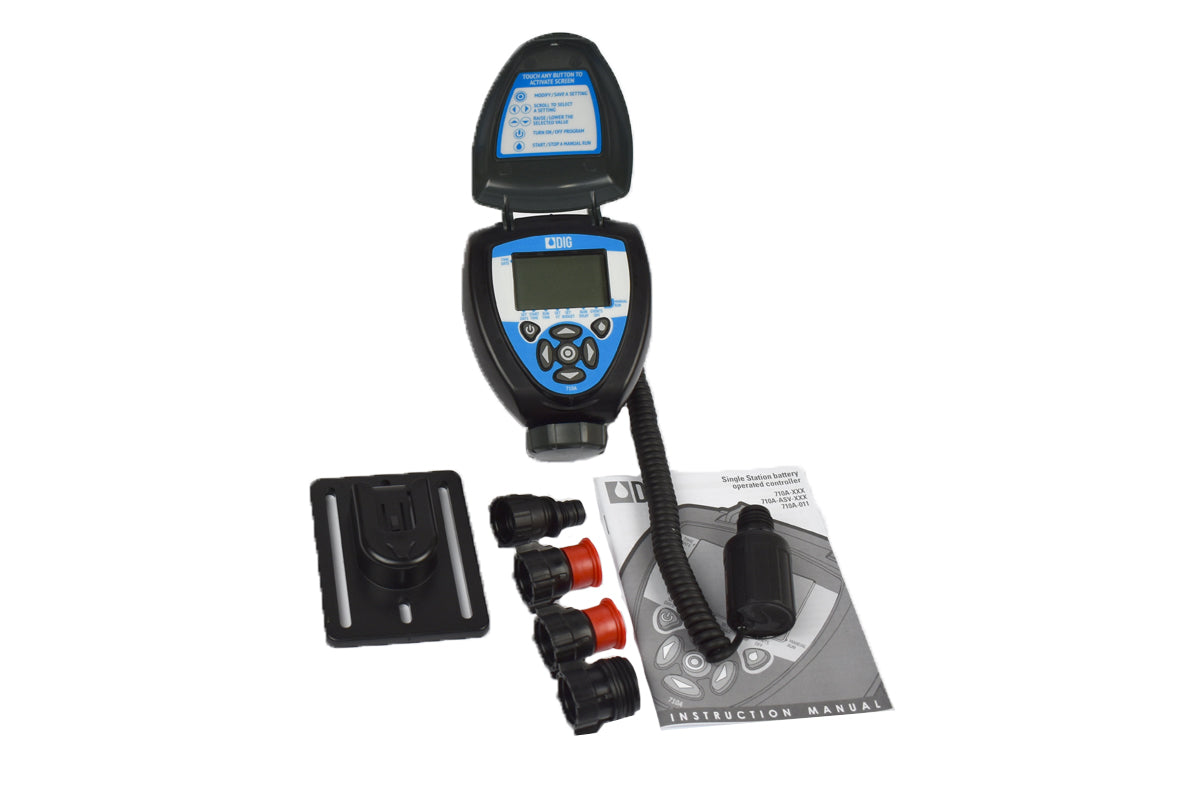

Adapters included: to convert Rain Bird, Hunter, and Toro valves (model 710A-000)
-
Mounting options: solenoid and valve box
-

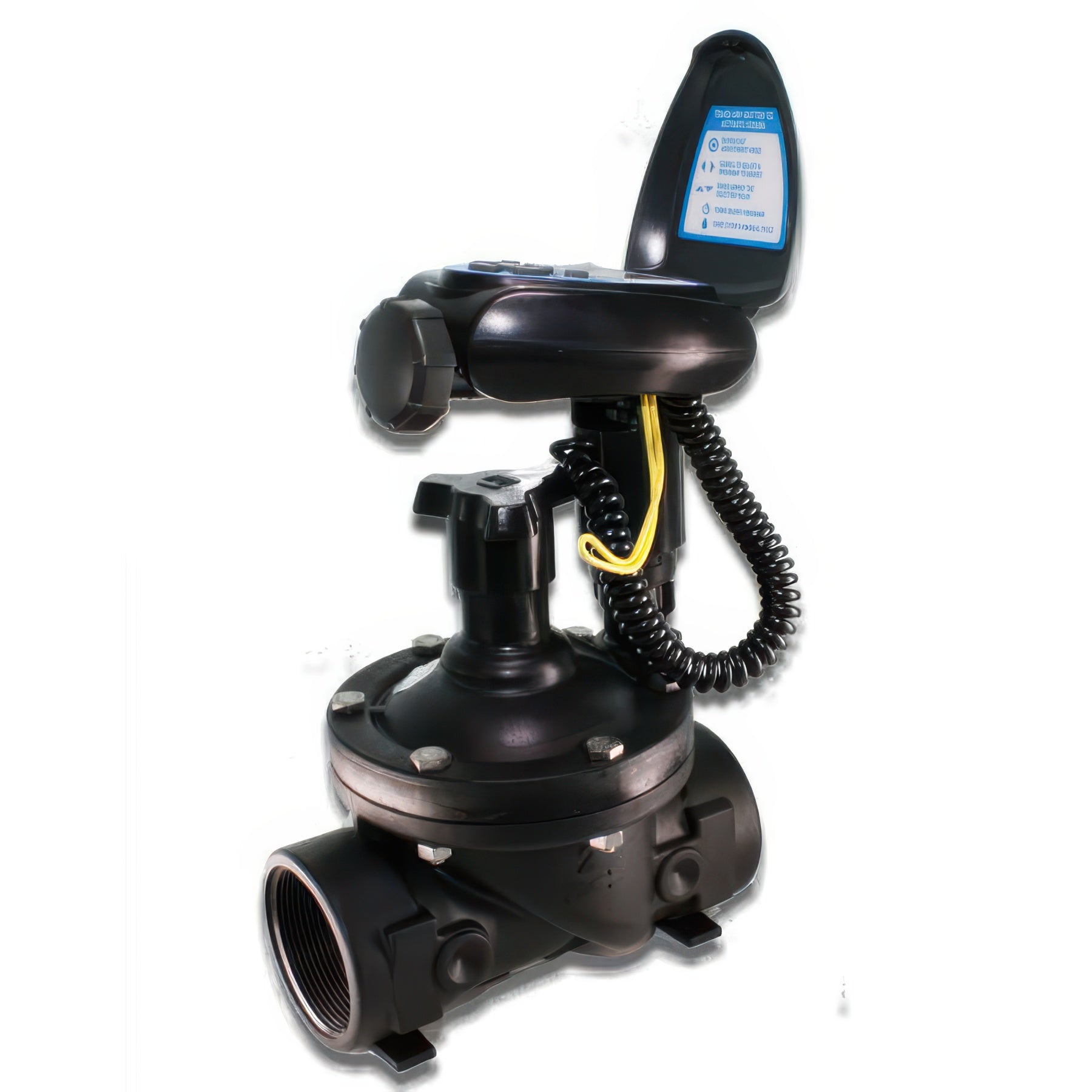

Valve type: 3/4" to 2" globe inline valves (NPT or BSP) or 3/4" and 1" actuators and anti-siphon valve (NPT)
-
Warranty: 3 years
-
Housing: high-impact plastic
-
Solenoid housing: glass reinforced nylon
-
Plunger & spacer: 430F stainless steel
-
Plunger rubber cap: EPDM
-
O-ring: Buna-N
-
Body: IP68
-
Power input: constant 11 volt
-
Solenoid: 7-12 VDC, two-way latching, normally closed
-
Materials: Housing: high impact plastic, Solenoid housing: glass reinforced nylon, Plunger & spacer: 430F stainless steel, Plunger rubber cap: EPDM, O-ring: Buna-N
-
RoHS: RoHS
-
Controller Type: DC Battery Operated, Single-Station
-
Controller Power Input: 11 Volts
-
Included Adapters: Rain Bird, Hunter, and Toro Valves
-
Housing Material: High Impact Plastic
-
3-Year Manufacturer Warranty: None
-
DC Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt
-
Retractable solenoid wire: 8.1” (coiled length when extended, approximately 24 in.)
-
Watering duration: from 1 minute up to 5 hours and 59 minutes set in one minute increments.
-
Watering frequency: weekly or cyclical schedule with odd days, even days, or intervals from 1 to 12 hours, and one to thirty (1- 30) days utilizing 365 day yearly calendar with leap year.
-
Up to five start times per day in weekly or cyclical schedule provides added flexibility for any type of watering application including sandy or clay soil: None
-
20 preset historical ET programs available for 10 climate zones, with 10 for drip irrigation and 10 for spray heads, to use with any irrigation setup and including an option to review the new calculated duration and option to adjust it: None
-
Monthly seasonal adjustment through the seasons with option to reduce the program duration setting to 5% or to increase it up to 200% in 5% increments without modifying the controller's program duration; also can be used to fine-tune the preset ET program: None
-
Rain Off/Delay option with automatic restart up to 99 days: None
-
Program Off option holds program until reactivated: None
-
Manual cycle via the program with automatic shutoff option: None
-
Brand: DIG
-
SKU: 710A-075
-
Weight (lb.): 1.7900
-
Prop 65: false
-
Lead Time: This Product Ships in 3-5 Days
-
Hazardous Material: false
-
UPC: 840620100878
-
UL Listed: No
-
ETL Listed: No
-
Irrigation Part Type: Irrigation Controller
