DeWalt 7441SD1PWR SBD 7441SD1-PWR POWER-STUD+ SD1 3/4

Product Description

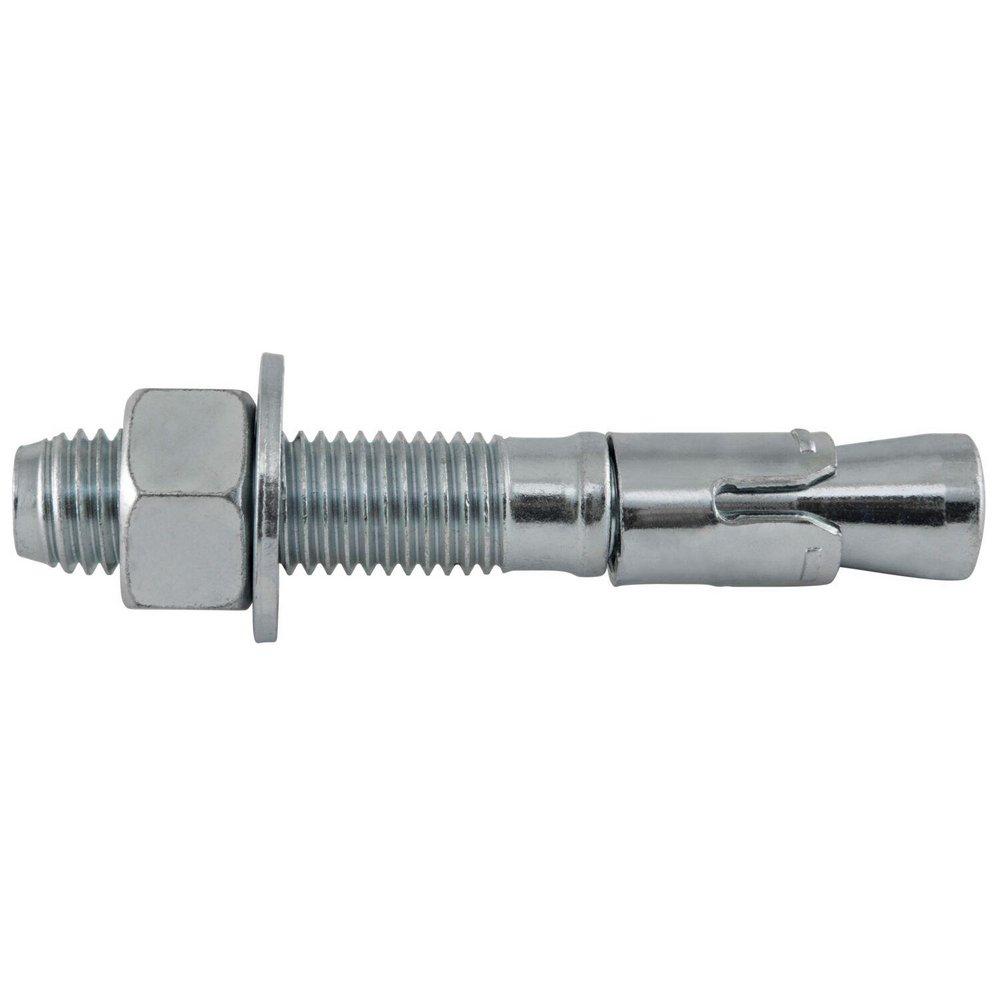

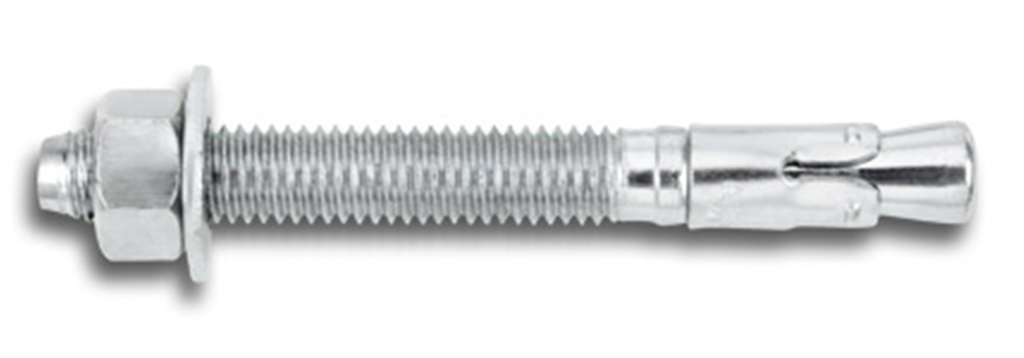

The DeWalt 7441SD1PWR Power-Stud+ SD1 is a reliable wedge expansion anchor designed for consistent performance in various concrete applications. This anchor is fully threaded and torque-controlled, ensuring secure installation in both cracked and uncracked concrete. Made with a zinc plated carbon steel body, the anchor includes a nut and washer for proper assembly.

• Suitable for normal-weight and sand-lightweight concrete
• Designed for follow-up expansion under tensile loading
• Installs through standard fixture holes

Product Highlights

This anchor is ideal for applications such as beam and column anchorage, seismic and wind loading, and cable supports. Its design allows installation in multiple concrete types including grouted concrete masonry.

Product Information

Standard Information

• Brand: DeWalt
• MPN: 7441SD1PWR

Technical Specifications

• Diameter: 3/4 inch
• Length: 4-3/4 inch
• Material: Zinc Plated Carbon Steel
• Thread Size: 3/4-10
• Shear Strength: 12,685 lb
• Tension Strength: 7,180 lb
• Minimum Embedment Depth: 3-3/8 inch
• Pack Quantity: 20/Box
