Dell ty4ft Fpc Audio Jack Cable Assembly Xps 9370

Product Description

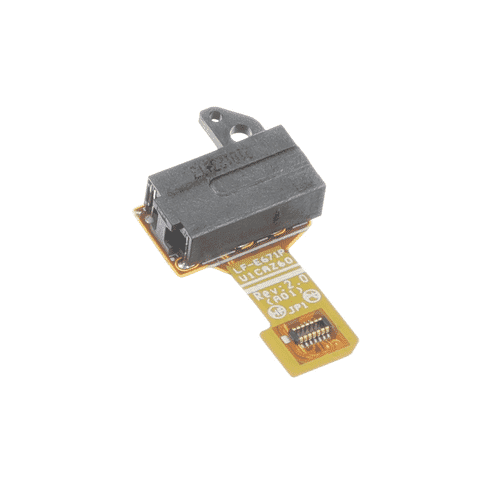

The DELL ty4ft is a flexible printed circuit (FPC) audio jack cable assembly designed as an OEM replacement component for Dell laptop systems. This cable connects the 3.5mm audio jack to the system board, restoring headphone and microphone functionality after jack failure, cable damage, or board-level replacement. Installation requires disassembly of the laptop chassis and is typically performed by a certified computer repair technician or experienced field service engineer familiar with Dell portable systems. Precision handling is required due to the ribbon-style construction of the flex cable.

This FPC cable assembly is suited for use in Dell XPS 9370 laptop systems. It is a direct OEM-specification replacement intended to restore original audio input and output performance. Technicians replacing a damaged audio jack, repairing broken solder connections, or completing a motherboard swap will find this part a necessary component for a complete repair. It is not designed for field modification or use outside the specified system family.

Key Features

• OEM-specification FPC construction for precise fit in designated Dell laptop chassis
• Restores 3.5mm audio jack connectivity including headphone and microphone channels
• Ribbon-style flex cable with factory-terminated connectors on both ends
• Designed for direct board-to-jack replacement without modification
• Compatible with Dell XPS 9370 system architecture

Compatibility

Designed as an OEM-style replacement audio jack FPC cable assembly for the Dell XPS 9370 laptop platform.

Installation Notes

Installation should be performed by a qualified laptop repair technician with experience servicing Dell XPS-series systems. Power down the system completely and disconnect the battery before beginning any internal disassembly. Use an ESD wrist strap and appropriate non-marring pry tools to avoid damage to the flex cable or ZIF connector locks. Handle the ribbon cable by its edges and avoid bending it at sharp angles, as FPC cables are susceptible to trace damage from improper flexing.

Technical Specifications

• Cable Type: Flexible Printed Circuit (FPC)
• Function: Audio Jack Assembly
• Connector Style: OEM factory-terminated ribbon

Standard Information

• Brand: DELL
• Manufacturer Part Number: ty4ft
