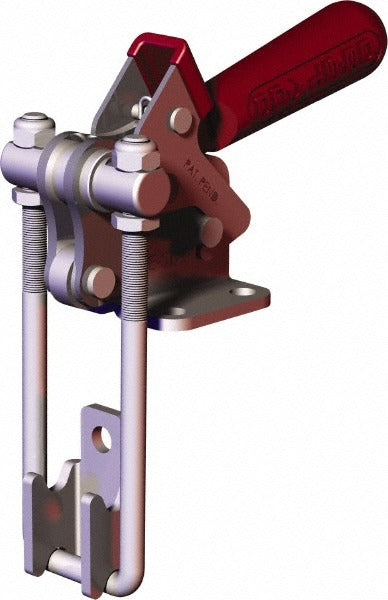

De-sta-co 344-R Pull-action Latch Clamp 2001 Lb

Product Description

The DE-STA-CO 344-R is a vertical pull-action latch clamp rated at 2,001 pounds (8,900 N) of load capacity, designed for industrial holding, clamping, and fixture applications where a secure mechanical lock is required. The clamp features a straight red handle, a flanged base for rigid surface mounting, and a U-Hook bar that delivers 2.46 inches of drawing movement. The carbon steel body provides the structural strength needed for demanding production and fabrication environments. Licensed machinists, toolmakers, fixture builders, and industrial maintenance technicians are the typical installers of this hardware.

This clamp is suited for use on welding fixtures, assembly jigs, machining setups, and production tooling where repeatable clamping force and positive latch lockout are required. The vertical orientation positions the handle perpendicular to the workpiece surface, making it appropriate for installations where overhead or lateral access is limited. The Toggle Lock Plus mechanism provides a secondary lock to prevent accidental release under vibration or dynamic load conditions. It ships with a latch plate, threaded U-Hook, and thumb control lever included.

Key Features

• 2,001 lb (8,900 N) load capacity for heavy-duty clamping applications
• 2.46 inches of drawing movement for firm workpiece engagement
• Toggle Lock Plus secondary lock prevents accidental release under vibration
• Flanged base with four mounting holes for rigid, stable surface attachment
• U-Hook bar style accommodates latch plate engagement with 1.13 inches bar width
• Carbon steel construction throughout for high-strength durability
• Includes latch plate, threaded U-Hook, thumb control lever, and Toggle Lock Plus

Compatibility

Designed as an OEM-style replacement or direct-fit addition for vertical pull-action latch clamp applications requiring a flanged base mount and U-Hook bar style at 2,001 lb capacity.

Installation Notes

Mounting is performed by industrial mechanics or toolmakers using standard fasteners through the flanged base mounting holes; verify fastener size against the 0.34 inch mounting hole diameter before installation. Ensure the mounting surface is flat and rigid to maintain rated clamping force and prevent stress on the base. Disengage all loads and de-energize any associated equipment before installing or adjusting the clamp position. Confirm the U-Hook thread engagement and latch plate alignment before applying full operating load.
