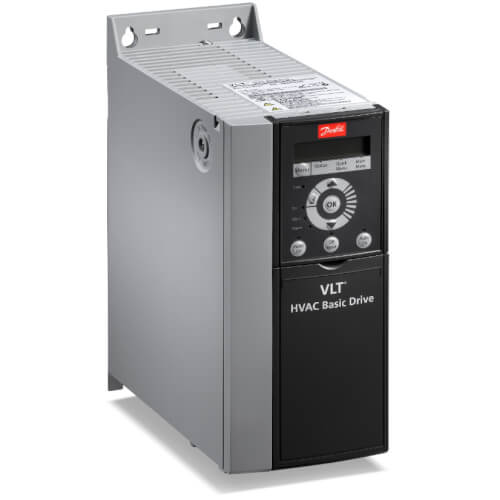

Danfoss VLTHVAC10HP460 Variable Frequency Drive 10 HP

Product Description

The Danfoss VLTHVAC10HP460 is a variable frequency drive designed for HVAC and compressor applications. This unit accepts 480V three-phase input to deliver a variable torque output. It is equipped with analog and digital inputs, programmable relay outputs, and has a chassis with IP20 protection. This drive is suitable for blower applications and features a graphical local control panel.

• Designed for HVAC and compressor applications.
• Features programmable inputs and relay outputs.
• Includes a graphical local control panel.

Product Highlights

The Danfoss VLTHVAC10HP460 serves as a reliable option for regulating motor speeds in HVAC systems. It offers versatility and control, catering to varying operational needs.

Product Information

Standard Information

• Brand: Danfoss
• Drive Type: VLT

Technical Specifications

• Input Voltage: 480 Volt Three Phase
• Output Voltage: 480 Volt Three Phase
• Horsepower: 10 HP
• Output Current: 14.5 Amp
• VFD Torque: Variable Torque
• Application: Blower
• Control Panel: LCP102 Control Panel
• Frame Type: A3
• Enclosure Rating: Chassis Protected IP20
• Line: FC 322
