Danfoss SZ125-4RI-CL Scroll Compressor 460V

Product Description

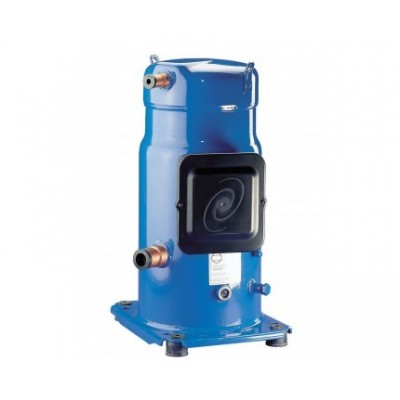

The Danfoss SZ125-4RI-CL is a hermetic scroll compressor designed for air conditioning and medium-temperature refrigeration systems. This compressor is suitable for use with R-134A, R-404A, and R-407C refrigerants. It operates with a three-phase power supply in the voltage range of three hundred eighty to four hundred fifteen or four hundred sixty volts, and at a frequency of fifty or sixty hertz.

• Hermetic compressor housing
• Compatible with multiple refrigerants
• Designed for medium-temperature refrigeration

Product Highlights

This compressor provides reliable operation and is equipped with rotolock sweat connections for both suction and discharge lines.

Product Information

Standard Information

• Brand: Danfoss
• MPN: SZ125-4RI-CL

Technical Specifications

• Refrigerant Type: R-134A, R-404A, R-407C, R-507A
• Compatibility: Not A2L-compatible
• Compressor Type: Hermetic
• Application: Air Conditioning Compressor
• Discharge Connection Type: Rotolock Sweat
• Suction Connection Type: Rotolock Sweat
• Input Voltage: 380-415/460V AC
• Frequency: 50 / 60 Hz
• Phase: 3-Phase
• Standards: CE Listed, EU RoHS Compliance, UKCA, UL Listed
• Weight: 77.85 kg
• Cylinder Volume: 166.6 cm3
• Oil Charge: 3800 cm3
• Suction: 1inch3/4 Rotolock
• Discharge: 1inch1/4 Rotolock
• Evaporating Temperature: -20 to +15 °C
• Starting Current: 120.0 A
• Maximum Operating Current: 25.0 A
• Dimensions: 253 x 253 x 579 mm
