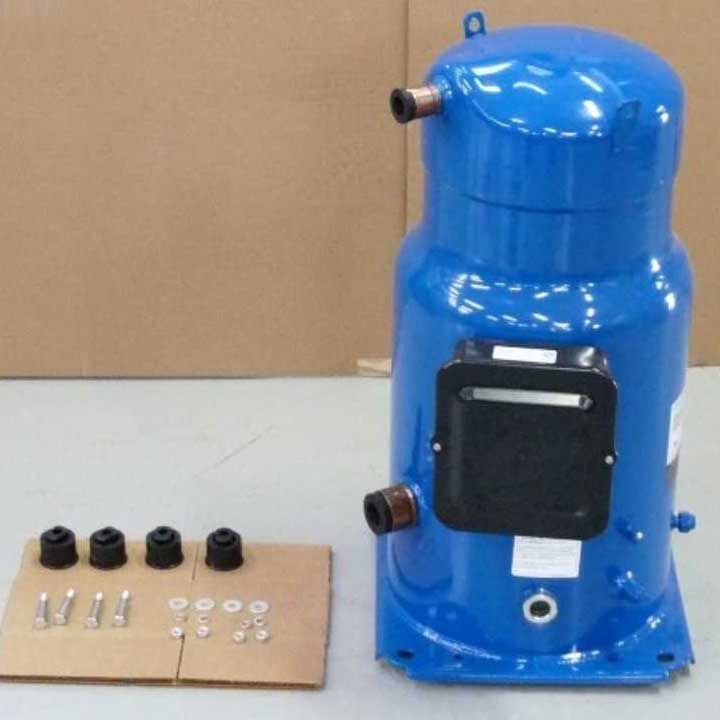

Danfoss SM185-4CAI Scroll Compressor 460V 185400BTU R22

Product Description

The Danfoss SM185-4CAI is a scroll compressor designed for refrigeration and air conditioning applications. It operates at 460V with a 3-phase motor, providing a cooling capacity of 185400 BTU/hr. This unit uses R22 refrigerant and is suitable for both commercial and industrial environments.

• 460V, 3-phase motor
• 185400 BTU/hr cooling capacity
• R22 refrigerant

Product Highlights

This scroll compressor features a high-efficiency design that ensures reduced energy consumption and operational costs. The compressor's compact size allows for easy installation and maintenance, making it ideal for large-scale cooling systems in demanding environments.

Product Information

Standard Information

• Brand: Danfoss
• MPN: SM185-4CAI
• Model: Performer

Technical Specifications

• Power Rating: 1/5 hp
• Voltage Rating: 400/460 V, 50/60 Hz, 3 Phase
• Cooling Capacity: 185000 BtuH
• Refrigerant Type: R-22
• Suction Line Size: 1-5/8 Inch ODF
• Temperature Rating: 130 deg F
• Discharge Line Size: 1-1/8 Inch ODF
• Weight: 215 lbs
• Motor RPM: 3500
• Motor Phase: 3
• Motor Voltage: 460V
• Motor Hertz: 60 Hz
