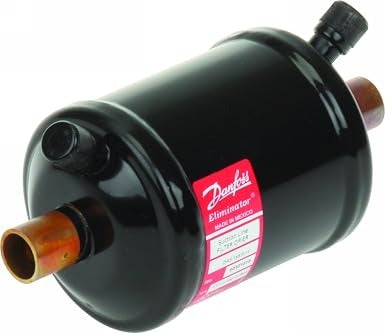

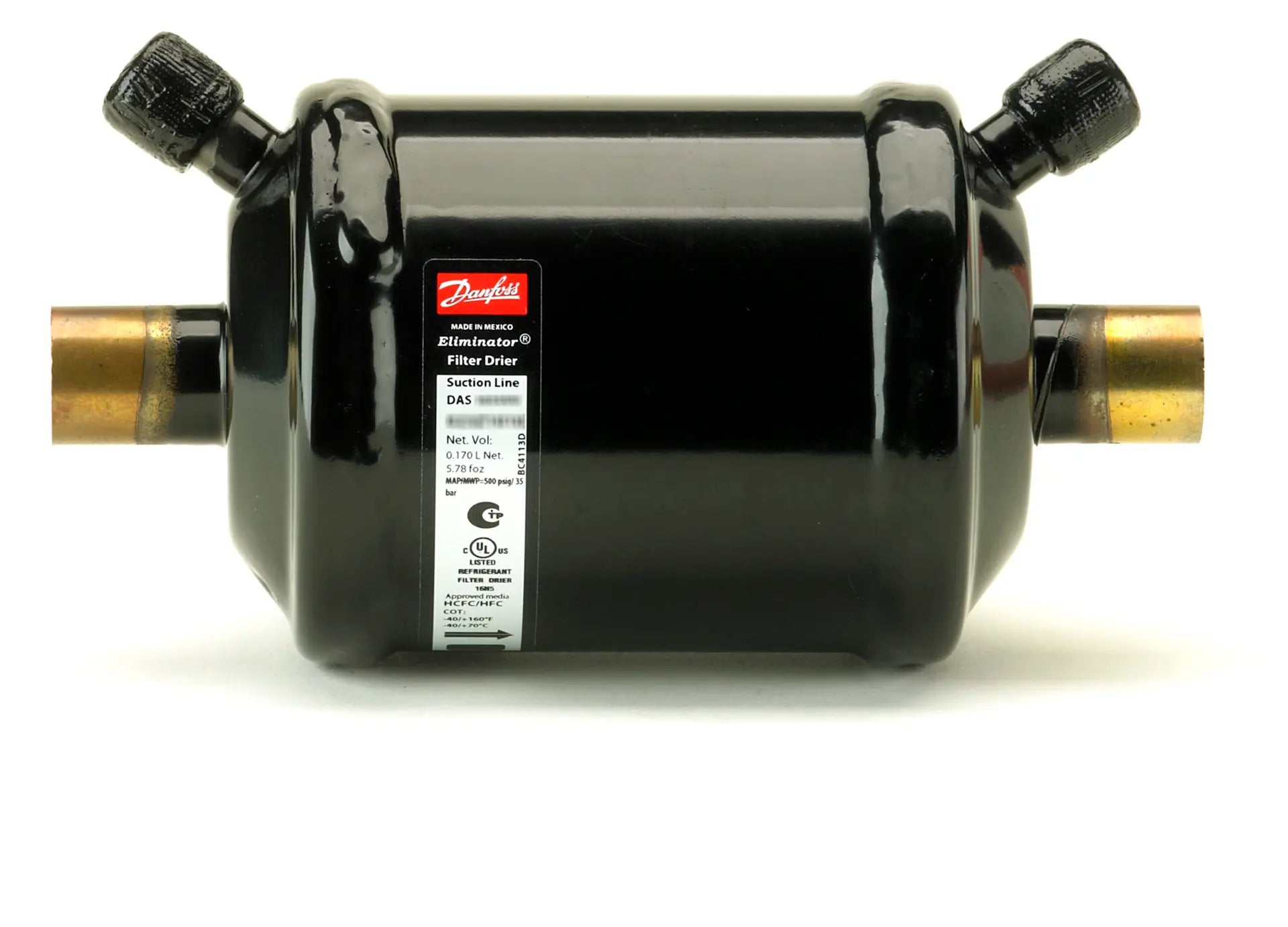

DANFOSS Danfoss DAS165SVV Hermetic acid filter-drier (16 cu.in. / 5/8 in)
DANFOSS Danfoss DAS165SVV Hermetic acid filter-drier (16 cu.in. / 5/8 in)
DANFOSS Danfoss DAS165SVV Hermetic acid filter-drier (16 cu.in. / 5/8 in)
DANFOSS Danfoss DAS165SVV Hermetic acid filter-drier (16 cu.in. / 5/8 in)

Danfoss DAS165SVV Hermetic acid filter-drier (16 cu.in. / 5/8 in)

DANFOSS
Brand: DANFOSS
SKU: DAS165SVV
Availability: Out Of Stock
$43.46
$43.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Danfoss DAS165SVV is a suction-line hermetic acid filter-drier for refrigeration and air conditioning systems. It features a solid core (16 cu.in.) composed of 70% activated alumina and 30% molecular sieve to adsorb acid and moisture after compressor burnout. The unit has a steel body with copper inlet/outlet and inlet/outlet Schrader valve connections, 5/8 in solder ODF connections, and a maximum working pressure of 35 bar (508 psi).

  • Solid core 16 cu.in. desiccant: 70% activated alumina and 30% molecular sieve for acid and moisture adsorption
  • Steel body with copper inlet/outlet, 5/8 in solder (ODF) connections and inlet/outlet Schrader valves
  • Maximum working pressure 35 bar (508 psi); UL classified; compatible with refrigerants including R134a, R404A, R407C, R410A and R1234yf

Product Highlights

Suction-line solid core filter-drier; 16 cu.in. desiccant; 5/8 in connections; 35 bar max working pressure.

Product Information

Standard Information

  • Brand: DANFOSS
  • Manufacturer Part Number: DAS165SVV
Technical Specifications
Brand
Danfoss
MPN
DAS165SVV
Product code
023Z1010
Product line
Air Conditioning and Commercial Refrigeration
Product group
Filter driers
Type
Hermetic acid filter-drier (DAS)
Core type
Solid core
Core composition
Activated alumina 70% / Molecular sieve 30%
Core capacity
16 cu.in.
Connection size (inlet/outlet)
5/8 in
Connection type
Solder, ODF
Connection material
Copper
Body material
Steel
Inlet/outlet valve
Inlet/outlet Schrader valve
Max working pressure
35.0 bar (508 psi)
Capacity examples (kW)
R134a: 9.5; R404A: 13.0; R407C: 15.0; R410A: 15.0; R507: 13.0
Capacity examples (TR)
R134a: 2.7; R404A: 3.7; R407C: 4.3; R410A: 4.3; R507: 3.7
Approved refrigerants (selection)
R1234yf, R1234ze(E), R125, R134a, R22/R407C, R23, R290, R32, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R600
Refrigerants (oil-free examples)
R1234ze(E), R134a, R513A, R515A
Certifications
UL classified (file SA6398)
RoHS compliance
Yes, with exemptions
REACH listed substance
Lead (CAS 7439-92-1)
Label / flow indicator
Printed label with flow arrow (one direction)
EAN/UPC
5702428160438
Item weight (manufacturer stated)
1.90 lbs per EA
