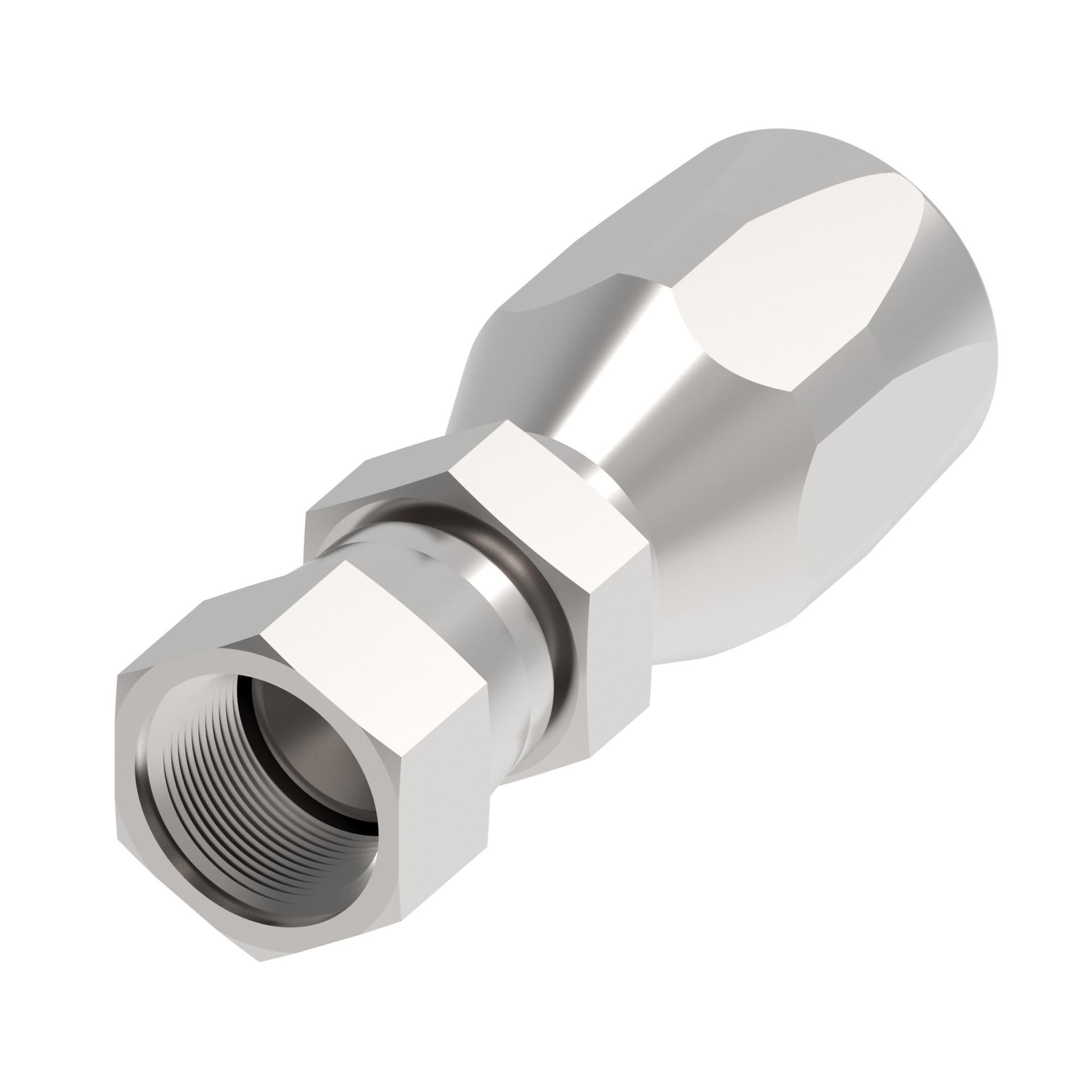

Danfoss 42520N-620 Fitting

Product Description

The DANFOSS 42520N-620 fitting is a Weatherhead braided fitting. Constructed from carbon steel with a Dura-Kote finish, this reusable fitting is part of the 425 N series. It is designed for use with H425 series hoses in high-pressure hydraulic applications.

• Compatible with H425 series hoses
• Features a female 37-degree swivel end type
• Reusable construction style

Product Highlights

Reusable carbon steel fitting for high-pressure hydraulic applications, compatible with H425 series hoses.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 42520N-620

Technical Specifications

• Brand: Weatherhead by Danfoss
• Compatible hose ID IN: 1.250
• Compatible hose ID MM: 31.750
• Compatible hoses: H425
• Compatible tube OD IN: 1.25
• Compatible tube OD MM: 31.750
• Construction Style: Reusable
• End size 1: -20
• End type 1: Female 37 degree swivel
• Finish plating: Dura-Kote
• Hex size 1 IN: 2.250
• Hex size 1 MM: 57.150
• Hex size 2 IN: 2.000
• Hex size 2 MM: 50.800
• Hose cut off factor IN: 2.750
• Hose cut off factor MM: 69.850
• Hose size: -20
• Inside diameter IN: 1.080
• Inside diameter MM: 27.432
• Product material: Carbon steel
• Series: 425 N
• Thread sealant: No
• Tube OD 1 IN: 1.250
• Tube OD 1 MM: 31.750
• Connection Size 1: 1-1/4 in
• Connection Size 2: 1-1/4 in
• Connection Type: Hose~JIC Female Swivel
• Connection Type 1: Hose
• Connection Type 2: SAE 37 deg JIC Flare Swivel
• Dimension Standards: SAE 100R2
• Fitting Type: Hose End
• For Use With: H425 Series Hoses
• Gender 2: Female
• Material: Steel
• Material Construction: Carbon Steel
• Nominal Size: 1-1/4 in
• Pressure Rating: 7000 psi
• Shape: Straight
• Thread Size 2: 1-5/8-12
