Product Description

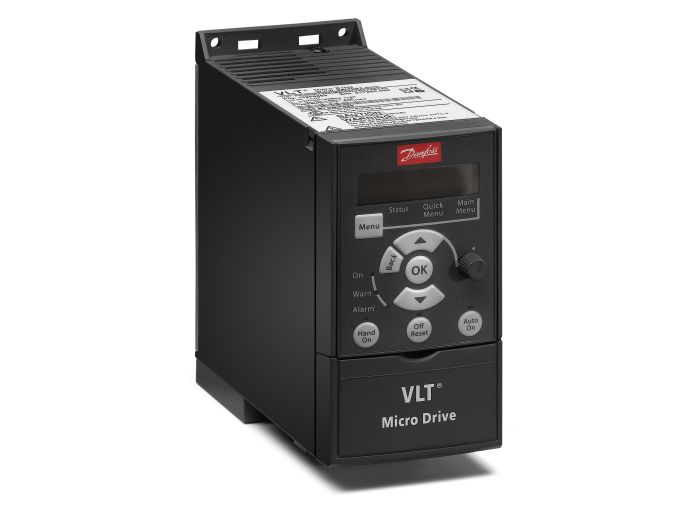

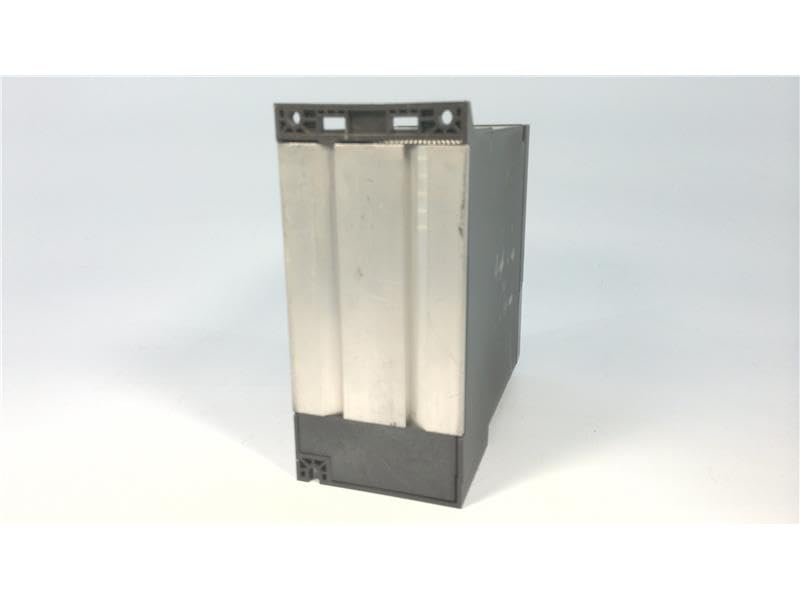

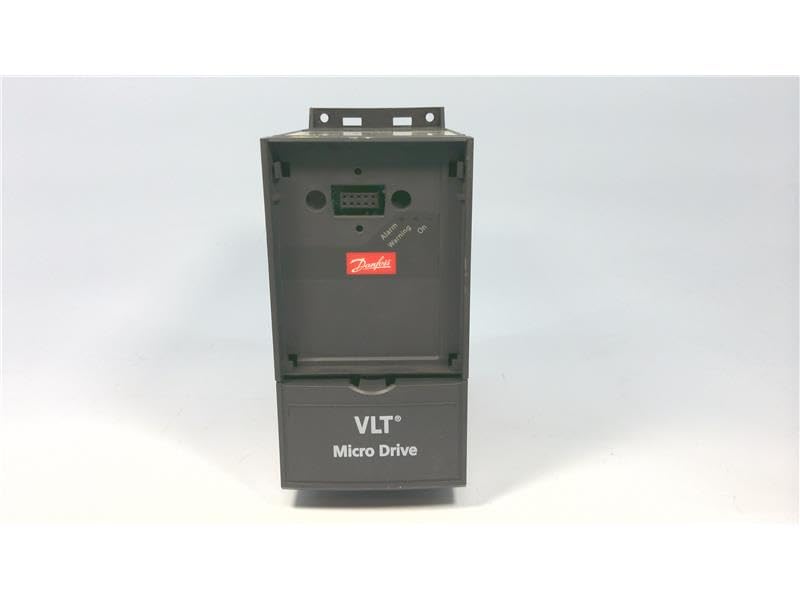

The DANFOSS 132F0018 is a micro variable frequency AC drive with 1 HP. This drive is designed to control AC motors and manufactured with respect for the environment, and it complies with the RoHS Directive. It features automatic motor tuning, a built-in RFI filter and conformal coated boards.
Product Highlights
This micro drive offers maximum strength and reliability in a small package. It is suitable for controlling AC motors in various applications.
Product Information
Standard Information
-
Brand: DANFOSS
-
Manufacturer Part Number: 132F0018
Technical Specifications
-
MPN: 132F0018
-
Brand: Danfoss
-
Manufacturer: DANFOSS
-
Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
-
AC Voltage: 380-480 VAC
-
Frequency: 50/60 Hz
-
Protection Rating: IP20
-
Height: 5.9 "
-
Width: 2.8 "
-
Depth: 5.8 "
-
Phase: 3
-
HP (Constant Torque Rating): 1 hp
-
Amps (Constant Torque Rating): 2.1 A
-
Brake: AC Braking, DC Injection
-
Closed Loop: No
-
AC Line Regenerative: No
-
Operator Controls: Sold Separately, See Accessories
-
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
-
Mounting: Panel
-
Drive Type: Micro Drive
-
VFD Control Panel: Sold Separately
-
VFD Torque: Variable Torque
-
VFD Application: Blower
-
VFD Horsepower Output: 1 HP
-
VFD Amperage Output: 2.1 Amp
-
VFD Frame Type: M1
-
VFD Input Voltage: 480 Volt Three Phase
-
VFD Output Voltage: 480 Volt Three Phase
-
VFD NEMA-IP Rating: Chassis Protected IP20
-
VFD Line: 132F
-
Rated Power (KW/HP): 0.75
-
Current (Amps): 2.2
-
Enclosure Rating: IP20
-
Voltage: 400
-
Phase Output: Three
-
Reference: 132F0018
-
Catalog Number: FC-051PK75T4E20H3XXCXXXSXXX
-
Units per package: 1
-
Micro Drive Series: 051
-
Power Rating: (PK75) 0.75 KW / 1.0 HP
-
Mains Voltage: 4 - 380 - 480 VAC
-
Enclosure: E20 - (E20) IP20 / Chassis
-
RFI Filter: H3 - (H3) RFI Class A1/B (C1)
-
Coating PCB: C - Coated PCB
-
Typecode Part 1: FC-051PK75T4E20H3XXCXXXSXXX
-
Modelcode01: FC-051PK75T4E20H3XXCXXXSXXX
-
Product View (Switch): GLBL - Global (Standard)
