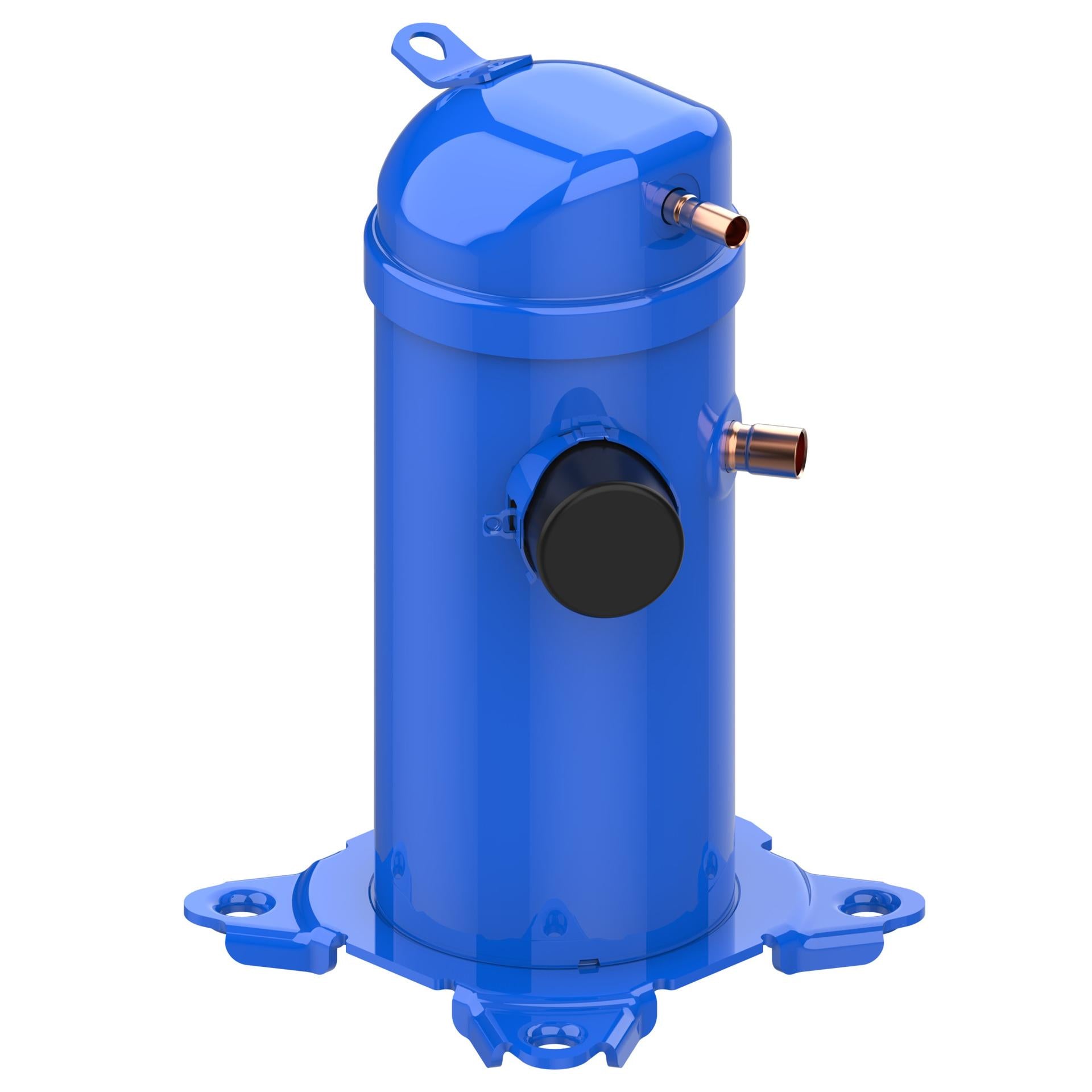

Danfoss 121L8557 Scroll Compressor HRH038U2LP6A

Product Description

The DANFOSS 121L8557 Scroll Compressor HRH038U2LP6A is designed for air conditioning applications, utilizing refrigerants R410A and R454B. It features a compressor power supply of 200-220/3/50 208-230/3/60 V and comes in a single pack format. This fixed-speed compressor has a brazed connection type.

• Optimized for air conditioning segment usage.
• Compatible with R410A and R454B refrigerants.
• Features a fixed speed and brazed connection type.

Product Highlights

The DANFOSS 121L8557 is a scroll compressor designed for air conditioning, using R410A and R454B refrigerants, with a fixed speed and brazed connection.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 121L8557
• Country of Origin: Mexico

Technical Specifications

• Approval: UL
• Brand technique: Scroll compressor
• Capacity control: Fixed speed
• Compressor power supply [V]: 200-220/3/50 208-230/3/60
• Configuration code: Single
• Connection type: Brazed
• Contains batteries: No
• Description: HRH038U2A
• Diameter [mm]: 165 mm
• Discharge connection height [mm]: 379 mm
• Discharge connection pipe size [in]: 1/2 in
• Discharge connection size [in]: 1/2 in
• Drawing number: 8590071
• Economizer: No
• Family: HRH
• Fitting standard: ODF
• Frequency [Hz]: 50/60
• Gauge port HP: None
• Gauge port LP: None
• High value of nominal voltage at 50Hz [V]: 220 V
• High value of nominal voltage at 60Hz [V]: 230 V
• High value of voltage range at 50Hz [V]: 242 V
• High value of voltage range at 60Hz [V]: 253 V
• IDV: No
• In scope of WEEE: No
• IP protection class: IP22
• Length [mm]: 239 mm
• Low value of nominal voltage at 50Hz [V]: 200 V
• Low value of nominal voltage at 60Hz [V]: 208 V
• Low value of voltage range at 50Hz [V]: 180 V
• Low value of voltage range at 60Hz [V]: 187 V
• LRA: 115 A
• Max pressure (PS) - high side: 44.6 bar
• Max pressure (PS) - low side: 33.3 bar
• Model number: HRH038U2LP6A
• Motor protection: Internal overload protector
• Network power supply [V/Ph/Hz]: 200-230/3/50 208-230/3/60
• Number of starts per hour [Max]: 12
• Oil charge [L]: 1.06 L
• Oil equalization: none
• Oil reference: 215PZ
• Oil type: POE
• Packing format: Single pack
• Phase: 3
• Power connections: Spade
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
• Refrigerant charge [kg] [Max]: 3.63 kg
• Refrigerants: R410A, R454B
• RLA: 14.7 A
• Rotational speed at 50Hz [rpm]: 2900 rpm
• Rotational speed at 60Hz [rpm]: 3500 rpm
• SCIP dossier no.: 22cfab5a-a26e-446d-9517-3ee5f4753699
• SCIP dossier product name: HLH/HLJ/HLM/HLP/HRH/HRM/HRP
• Segment usage: Air conditioning
• Suction connection height [mm]: 250 mm
• Suction connection material: -
• Suction connection pipe size [in]: 3/4 in
• Suction connection size [in]: 3/4 in
• Swept volume [cm3]: 36.54 cm³
• Technology: Scroll
• Total height [mm]: 413 mm
• UL evaluated: Yes
• Viscosity [cP]: 46 cP
• Width [mm]: 239 mm
• Winding resistance 1-2 [Ohm]: 0.98 Ohm
• Winding resistance 1-3 [Ohm]: 0.98 Ohm
• Winding resistance 2-3 [Ohm]: 0.73 Ohm
• Product group: Hermetic compressors
• Product line: Commercial Compressors
• Product name: Scroll compressor HRH
• Product Type: HRH038 (Version A)
• UL mark: Yes
• U.S. EPA label: For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
