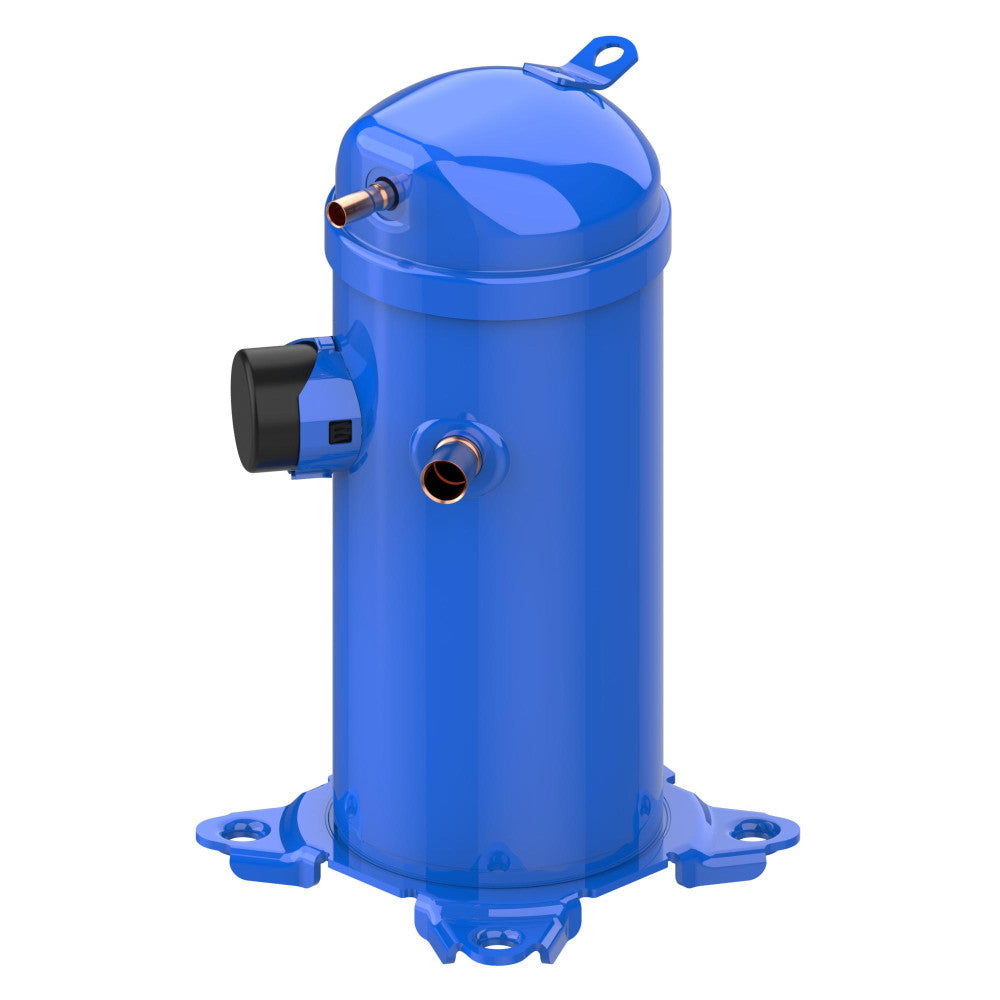

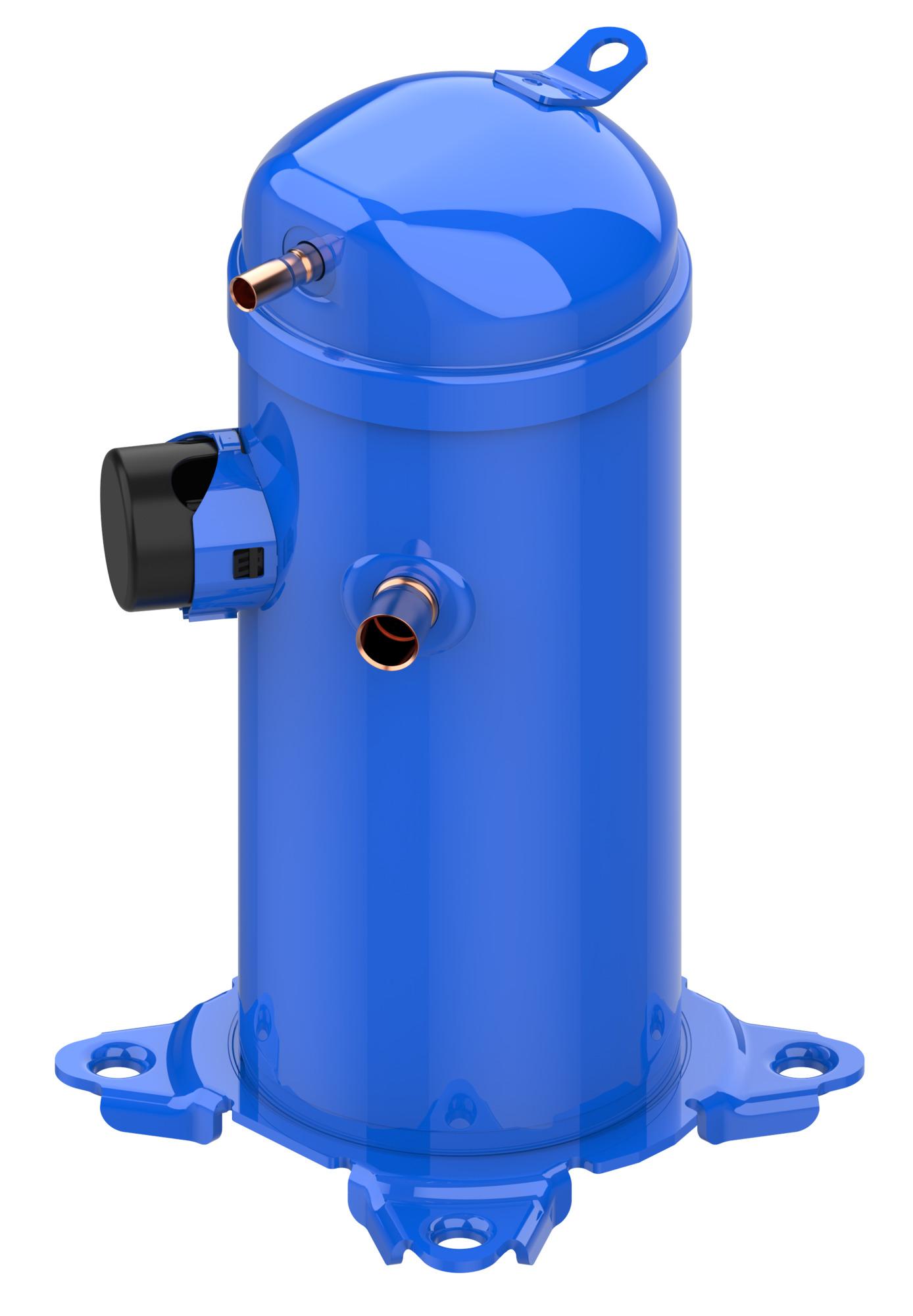

Danfoss 121L8535 Scroll Compressor HRH044U1LP6A

Product Description

The DANFOSS 121L8535 scroll compressor HRH044U1LP6A is designed for air conditioning applications and utilizes R410A and R454B refrigerants. It operates on a 208-230/1/60 V/Ph/Hz power supply and features a fixed speed capacity control. The compressor is a hermetic type, suitable for single-pack installation.

• Designed for air conditioning applications.
• Utilizes R410A and R454B refrigerants.
• Operates on a 208-230/1/60 V/Ph/Hz power supply.

Product Highlights

This scroll compressor is ideal for air conditioning systems, offering reliable performance with its fixed-speed capacity and compatibility with multiple refrigerants.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 121L8535
• Country of Origin: Canada

Technical Specifications

• Type: HRH044 (Version A)
• Product group: Hermetic compressors
• Product Name Description: Scroll compressor HRH
• Approval: UL
• Brand technique: Scroll compressor
• Capacity control: Fixed speed
• Compressor power supply [V]: 208-230/1/60
• Configuration code: Single
• Connection type: Brazed
• Description: HRH044U1A
• Diameter [mm]: 184 mm
• Discharge connection height [mm]: 403 mm
• Discharge connection pipe size [in]: 1/2 in
• Discharge connection size [in]: 1/2 in
• Drawing number: 8590080
• Economizer: No
• Family: HRH
• Fitting standard: ODF
• Frequency [Hz]: 60
• Gauge port HP: None
• Gauge port LP: None
• High value of nominal voltage at 60Hz [V]: 230 V
• High value of voltage range at 60Hz [V]: 253 V
• IDV: No
• IP protection class: IP22
• Length [mm]: 239 mm
• Low value of nominal voltage at 60Hz [V]: 208 V
• Low value of voltage range at 60Hz [V]: 187 V
• LRA: 150 A
• Max pressure (PS) - high side: 44.6 bar
• Max pressure (PS) - low side: 33.3 bar
• Model number: HRH044U1LP6A
• Motor protection: Internal overload protector
• Network power supply [V/Ph/Hz]: 208-230/1/60
• Number of starts per hour [Max]: 12
• Oil charge [L]: 1.57 L
• Oil drain: none
• Oil equalization: none
• Oil reference: 215PZ
• Oil type: POE
• Packing format: Single pack
• Phase: 1
• Power connections: Spade
• Refrigerant charge [kg] [Max]: 5.44 kg
• Refrigerants: R410A, R454B
• RLA: 24.3 A
• Rotational speed at 60Hz [rpm]: 3500 rpm
• Segment usage: Air conditioning
• Suction connection height [mm]: 261 mm
• Suction connection pipe size [in]: 7/8 in
• Suction connection size [in]: 7/8 in
• Swept volume [cm3]: 42.61 cm³
• Technology: Scroll
• Total height [mm]: 435 mm
• UL evaluated: Yes
• Viscosity [cP]: 46 cP
• Width [mm]: 239 mm
• Material Description: HRH044U1LP6A-Multi
• Product line: Commercial Compressors
• Product Type: HRH044 (Version A)
• UL mark: Yes
• Model: HRH044U1LP6
