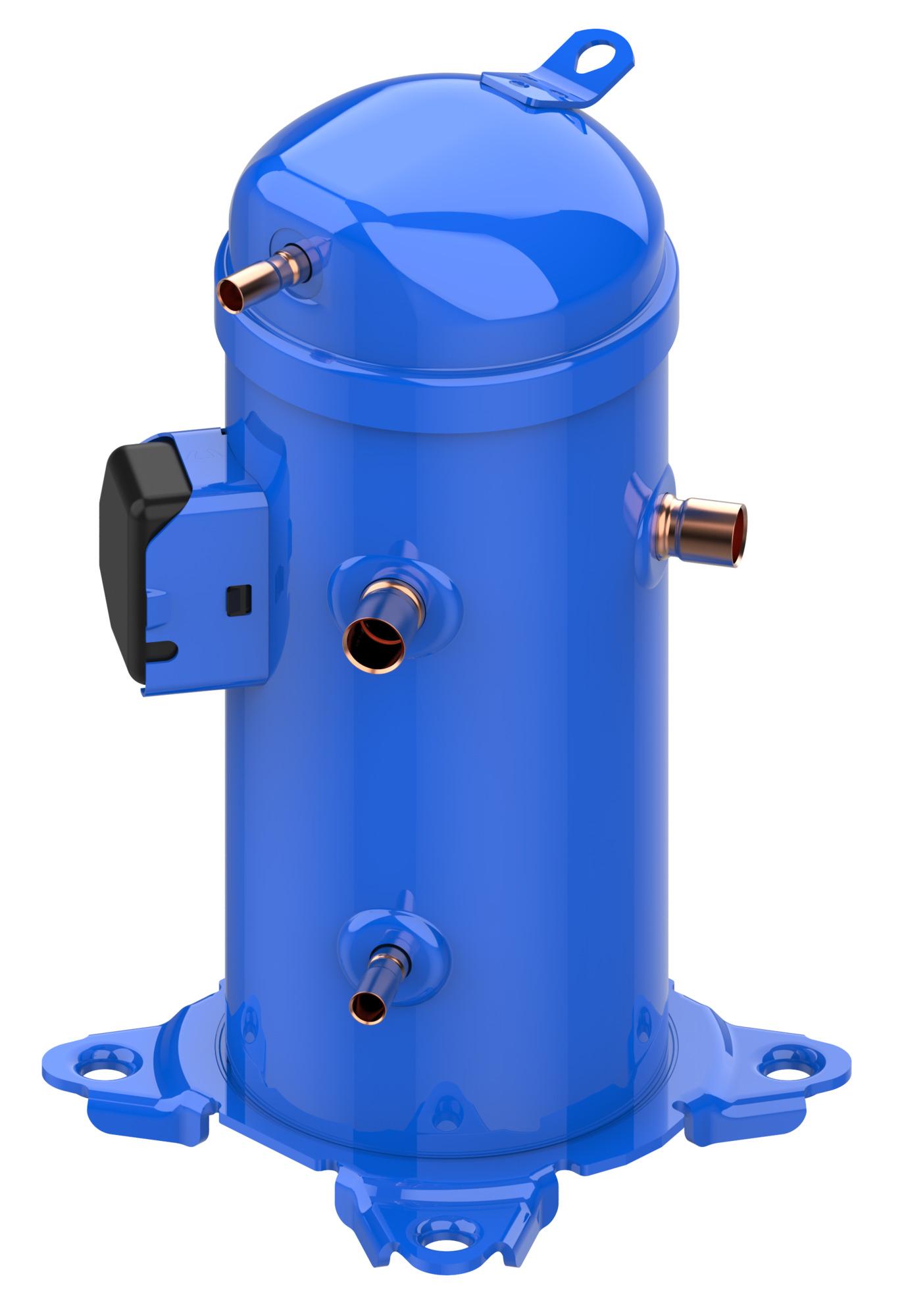

Danfoss 121L8485 scroll compressor, hlj083t4lc8a

Product Description

The Danfoss 121L8485 Scroll Compressor, HLJ083T4LC8A is designed for air conditioning applications, utilizing refrigerants R410A and R454B. It features a compressor power supply of 380-415/3/50 460/3/60 V and comes in a single pack. The compressor has a fixed speed capacity control and internal overload protector for motor protection.

• Designed for air conditioning applications.
• Utilizes refrigerants R410A and R454B.
• Features a compressor power supply of 380-415/3/50 460/3/60 V.

Product Highlights

The Danfoss 121L8485 scroll compressor is ideal for air conditioning systems using R410A and R454B refrigerants.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 121L8485

Technical Specifications

• Approval: UL
• Brand technique: Scroll compressor
• Capacity control: Fixed speed
• Compressor power supply [V]: 380-415/3/50 460/3/60
• Configuration code: Single
• Connection type: Brazed
• Contains batteries: No
• Description: HLJ083T4A
• Diameter [mm]: 184 mm
• Discharge connection height [mm]: 403 mm
• Discharge connection pipe size [in]: 1/2 in
• Discharge connection size [in]: 1/2 in
• Drawing number: 8590065
• Economizer: No
• Family: HLJ
• Fitting standard: ODF
• Frequency [Hz]: 50/60
• Gauge port HP: None
• Gauge port LP: None
• Glass mounting: None
• High value of nominal voltage at 50Hz [V]: 415 V
• High value of nominal voltage at 60Hz [V]: 460 V
• High value of voltage range at 50Hz [V]: 457 V
• High value of voltage range at 60Hz [V]: 506 V
• IDV: No
• In scope of WEEE: No
• IP protection class: IP22
• Length [mm]: 239.0 mm
• Low value of nominal voltage at 50Hz [V]: 380 V
• Low value of nominal voltage at 60Hz [V]: 460 V
• Low value of voltage range at 50Hz [V]: 342 V
• Low value of voltage range at 60Hz [V]: 414 V
• LRA: 100 A
• Max pressure (PS) - high side: 47.20 bar
• Model number: HLJ083T4LC8A
• Motor protection: Internal overload protector
• Network power supply [V/Ph/Hz]: 380-415/3/50 460/3/60
• Number of starts per hour [Max]: 12
• Oil charge [L]: 1.57 L
• Oil drain: None
• Oil equalization: 1/2''
• Oil reference: 215PZ
• Oil type: POE
• Packing format: Single pack
• Phase: 3
• Power connections: Screw connectors 10-32 UNF x 9.5
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
• Refrigerant charge [kg] [Max]: 5.44 kg
• Refrigerants: R410A, R454B
• RLA: 13 A
• Rotational speed at 50Hz [rpm]: 2900 rpm
• Rotational speed at 60Hz [rpm]: 3500 rpm
• Segment usage: Air conditioning
• Suction connection height [mm]: 261 mm
• Suction connection material: -
• Suction connection pipe size [in]: 7/8 in
• Suction connection size [in]: 7/8 in
• Technology: Scroll
• Torque earth [Nm]: 2.00 N-m
• Torque power [Nm]: 3.00 N-m
• Total height [mm]: 435.0 mm
• UL mark: Yes
• Viscosity [cP]: 46.0 cP
• Width [mm]: 239.00 mm
• Winding resistance 1-2 [Ohm]: 1.62 Ohm
• Winding resistance 1-3 [Ohm]: 1.60 Ohm
• Winding resistance 2-3 [Ohm]: 1.63 Ohm
• Swept volume [cm3]: 78.08 cm³
• U.S. EPA label: For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
