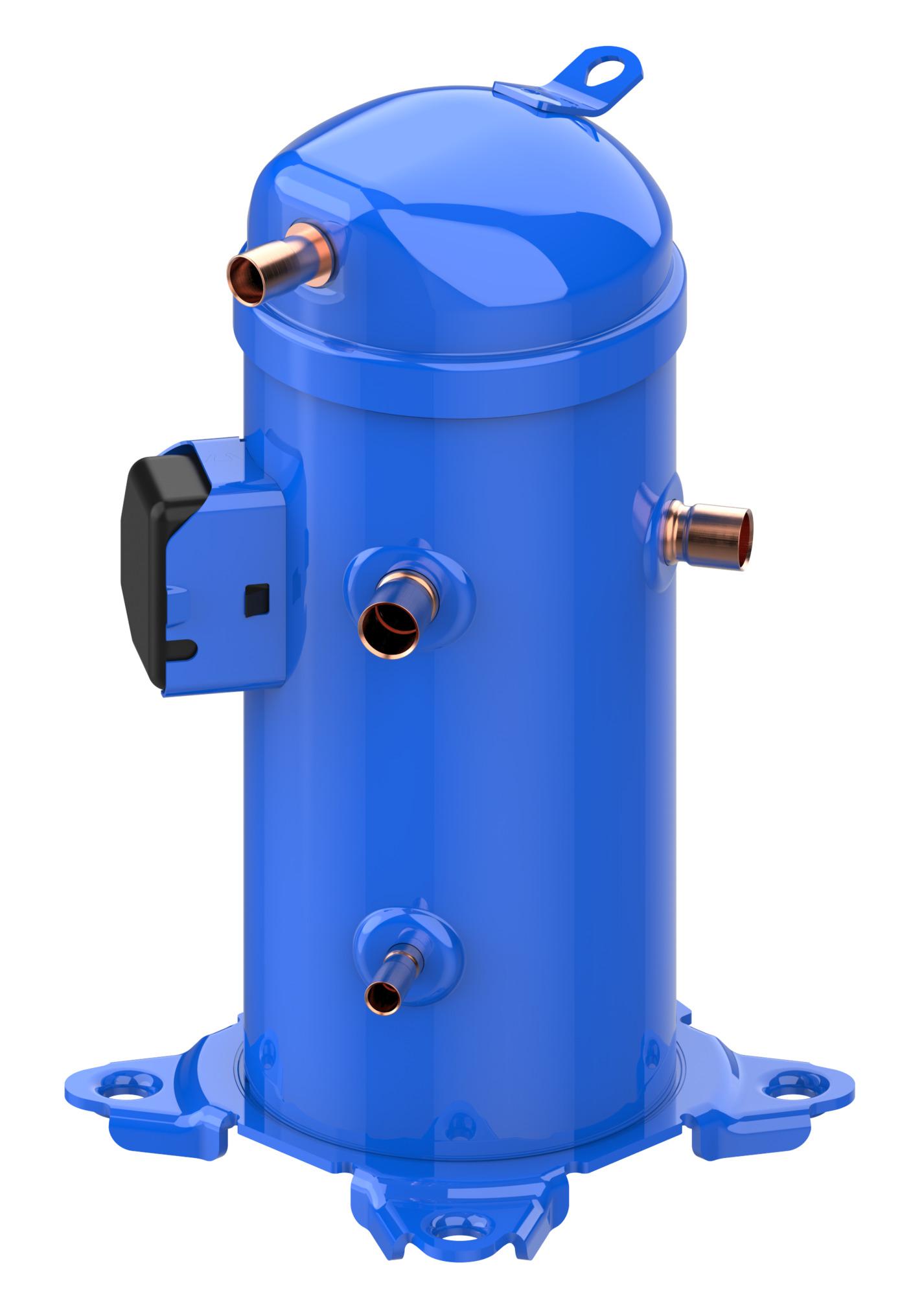

Danfoss 121L3340 Scroll Compressor HLP081T2LC8

Product Description

The DANFOSS 121L3340 Scroll Compressor HLP081T2LC8 is designed for air conditioning applications and uses R407C refrigerant. It operates on a compressor power supply of 200-220/3/50 208-230/3/60 V and comes in a single pack. This hermetic compressor features fixed speed capacity control and scroll technology.

• Refrigerant: R407C
• Segment usage: Air conditioning
• Compressor power supply: 200-220/3/50 208-230/3/60 V

Product Highlights

Designed for air conditioning with R407C refrigerant and a power supply of 200-230/3/50 208-230/3/60 V.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 121L3340
• Country of Origin: USA

Technical Specifications

• Type: HLP081
• Product group: Hermetic compressors
• Product Name Description: Scroll compressor HLP
• Approval: CE, UL, UKCA
• Brand technique: Scroll compressor
• Capacity control: Fixed speed
• CE mark: Yes
• China RoHS compliance: Yes with exemptions
• China RoHS exemption clause: 7.1, 7.3, 8.1, 8.3.1
• Compressor power supply [V]: 200-220/3/50 208-230/3/60
• Description: HLP081T2
• Diameter [mm]: 184 mm
• Discharge connection height [mm]: 422 mm
• Drawing number: 0XR6049B-3
• EU RoHS compliance: Yes with exemptions
• EU RoHS exemption clause: 7(c)-I, 6(a), 6(a)-I, 6(c), 7(a)
• Family: HLP
• Fitting standard: ODF
• Gauge port HP: None
• Gauge port LP: None
• Glass mounting: None
• IDV: No
• In scope of WEEE: No
• Length [mm]: 239 mm
• Model number: HLP081T2LC8
• Network power supply [V/Ph/Hz]: 200-230/3/50 208-230/3/60
• Oil equalization: 1/2''
• Packing format: Single pack
• Packing quantity: 1
• Refrigerants: R407C
• Segment usage: Air conditioning
• Suction connection height [mm]: 280 mm
• Swept volume [cm3]: 110.94 cm³
• Technology: Scroll
• Total height [mm]: 455 mm
• UL mark: Yes
• Width [mm]: 239 mm
• MPN: 121L3340
• Brand: DANFOSS
