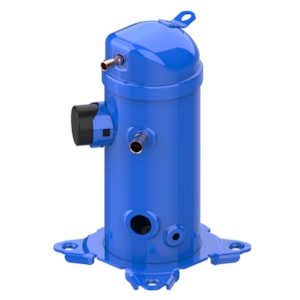

Danfoss 121L2282 Scroll Compressor Power Air Conditioning

Product Description

The Danfoss 121L2282 is a reliable scroll compressor suitable for air conditioning systems. It operates with R410A refrigerant and functions at a fixed speed using a 3-phase power supply. The operating voltage is 200-220 volts at 50 hertz and 208-230 volts at 60 hertz. This compressor includes brazed connections and thermal overload protection for enhanced safety and efficiency.

• Compatible with R410A refrigerant.
• Internal overload protection.
• Comes with installation instructions and mounting kit.

Product Highlights

This compressor is ideal for HVAC systems, ensuring effective cooling and performance.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 121L2282

Technical Specifications

• Type: HRH029
• Product Group: Hermetic compressors
• Refrigerant: R410A
• Power Supply: 200-220/3/50, 208-230/3/60 V/Ph/Hz
• Frequency: 50/60 Hz
• Capacity Control: Fixed speed
• Motor Protection: Internal overload protector
• Oil Charge: 1.06 L
• Technology: Scroll
• Net Weight: 30.95 Kilogram
• Length: 239 mm
• Width: 239 mm
• Total Height: 413 mm
• Suction Connection Size: 3/4 in
• Discharge Connection Size: 1/2 in
